R
EPLACING
THE
S
YSTEM
B
OARD
7
III. Locating the System Board
Turn the computer on its side (open side facing up) and locate
the system board (see Figure 3-1).

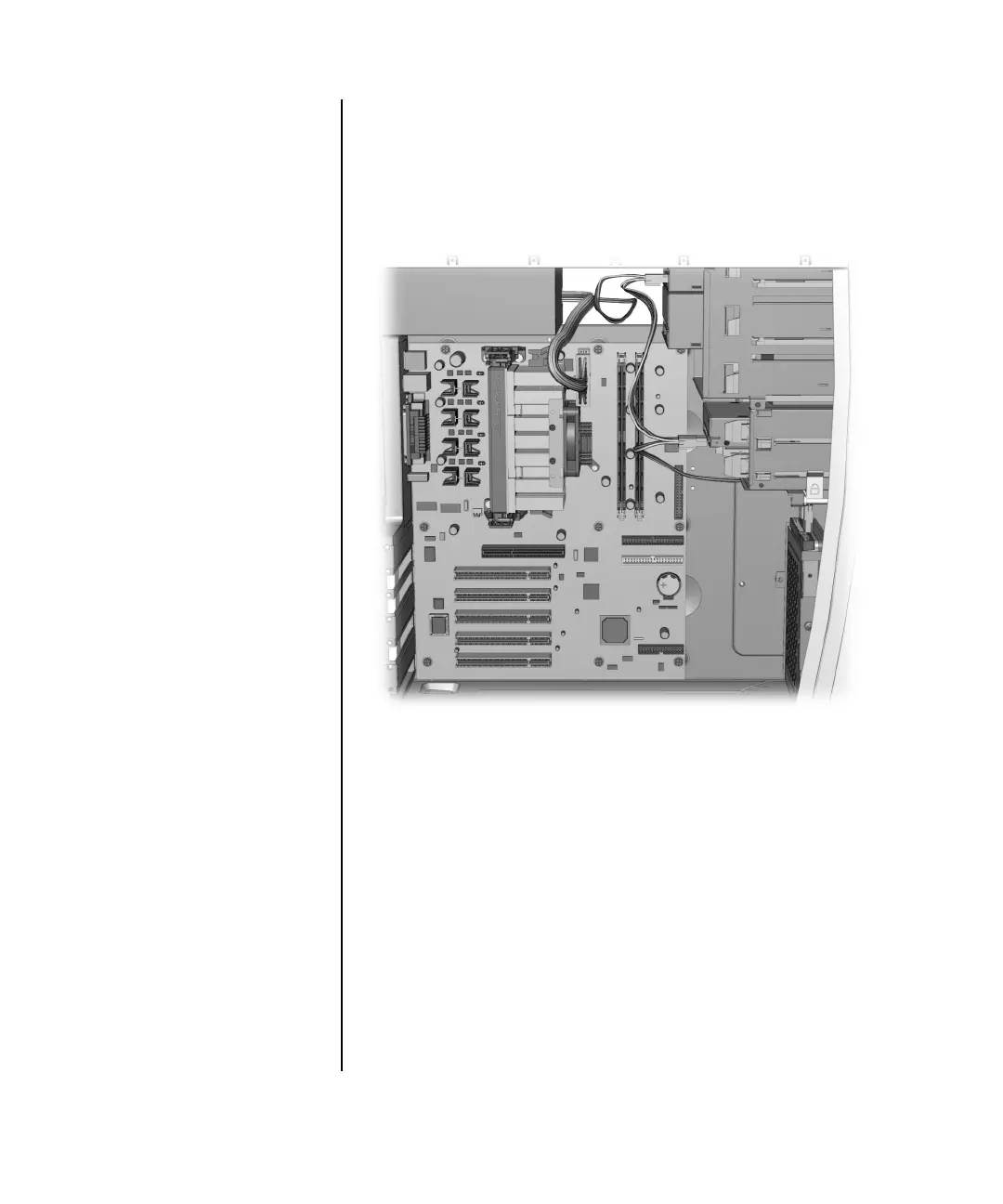

Figure 3-1
Important: The location of the system board components may vary
slightly by model.
