Compaq 5000 Series Replacing

8 R
EPLACING THE
S
YSTEM
B
OARD
IV. Removing the Data Cables from the System
Board

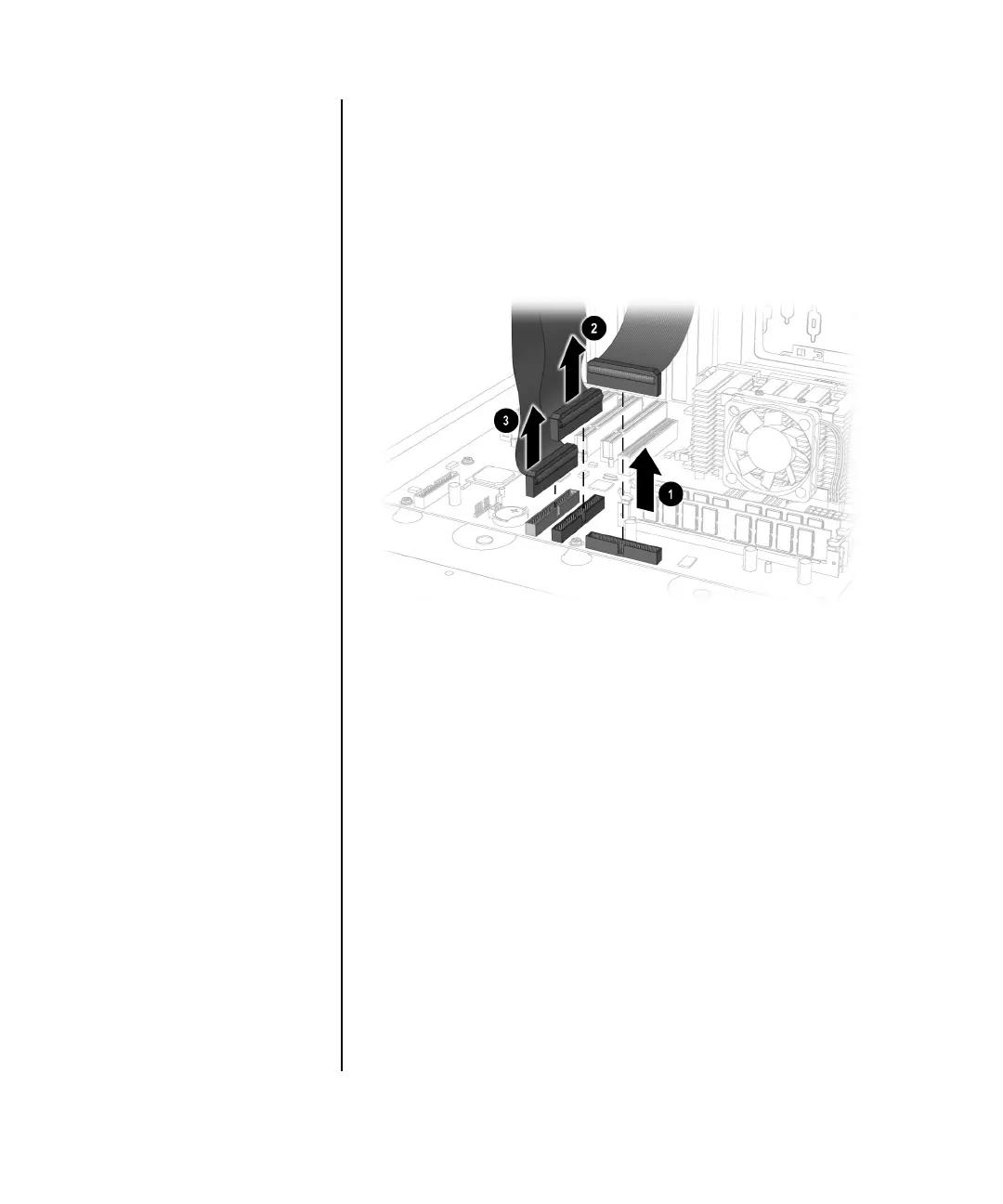

Disconnect the diskette drive 1, hard drive 2, and
CD-ROM 3, CD-RW 3, and/or DVD drive 3 data cables
from the system board (see Figure 4-1).
Figure 4-1

Compaq 5000 Series Specifications

General

Memory Type	SDRAM
Optical Drive	CD-ROM or DVD-ROM
Audio	Integrated
Operating System	Windows 98
Ports	USB, Serial, Parallel, PS/2
Expansion Slots	PCI
