5–26 Maintenance and Service Guide
Removal and Replacement Procedures
5. Position the notebook so the rear panel is facing you.
6. Remove the four TM2.5 × 7.0 screws 1 that secure the left
and right hinge covers to the base enclosure (Figure 5-21).
7. Remove the left 2 and right 3 hinge covers by sliding them
toward the outside of the notebook.
✎
The hinge covers are included in the Miscellaneous
Plastics/Hardware Kit, spare part number 310359-001.
8. Lift the display straight up 4 to remove it from the notebook.

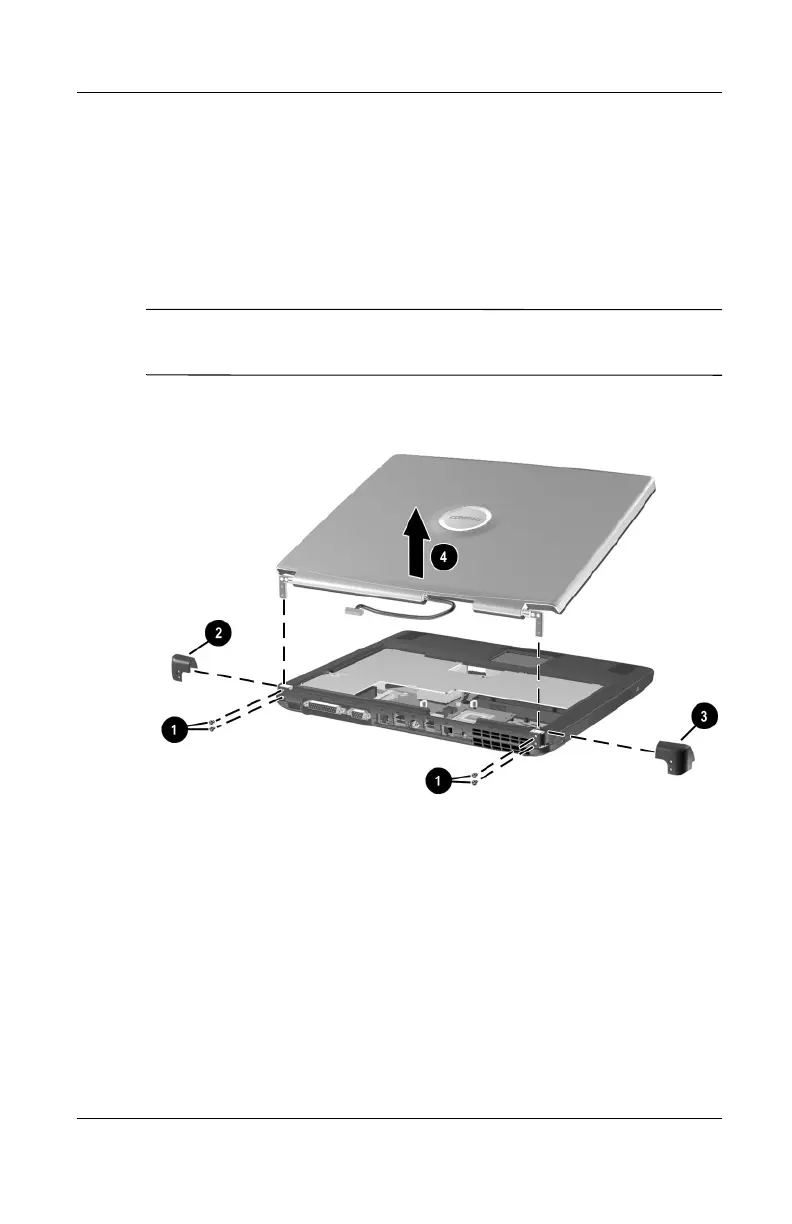

Figure 5-21. Removing the Display Assembly
Reverse the preceding procedure to install the display assembly.
307503-003.book Page 26 Friday, April 4, 2003 3:37 PM
