Removal and Replacement Procedures
Maintenance and Service Guide 5–29
4. Remove the following PM2.5 × 4.0 screws (Figure 5-23):
❏ Four screws in the battery bay 1
❏ Two screws in the optical drive bay 2

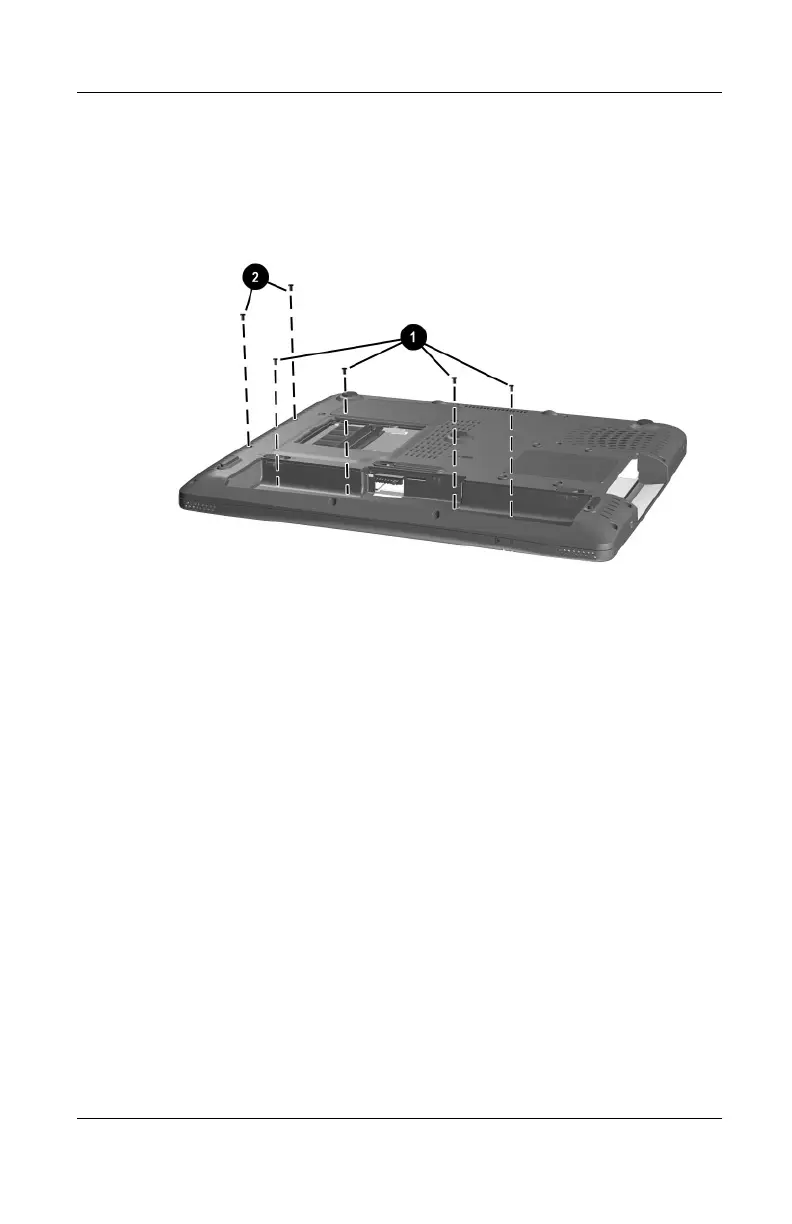

Figure 5-23. Removing the Top Cover Screws
