Compaq 800 Series - Basic Solutions and Helpful Hints

Removal and Replacement Procedures
Maintenance and Service Guide 5–31
8. Lift the top cover straight up to remove it from the base
enclosure (Figure 5-25).

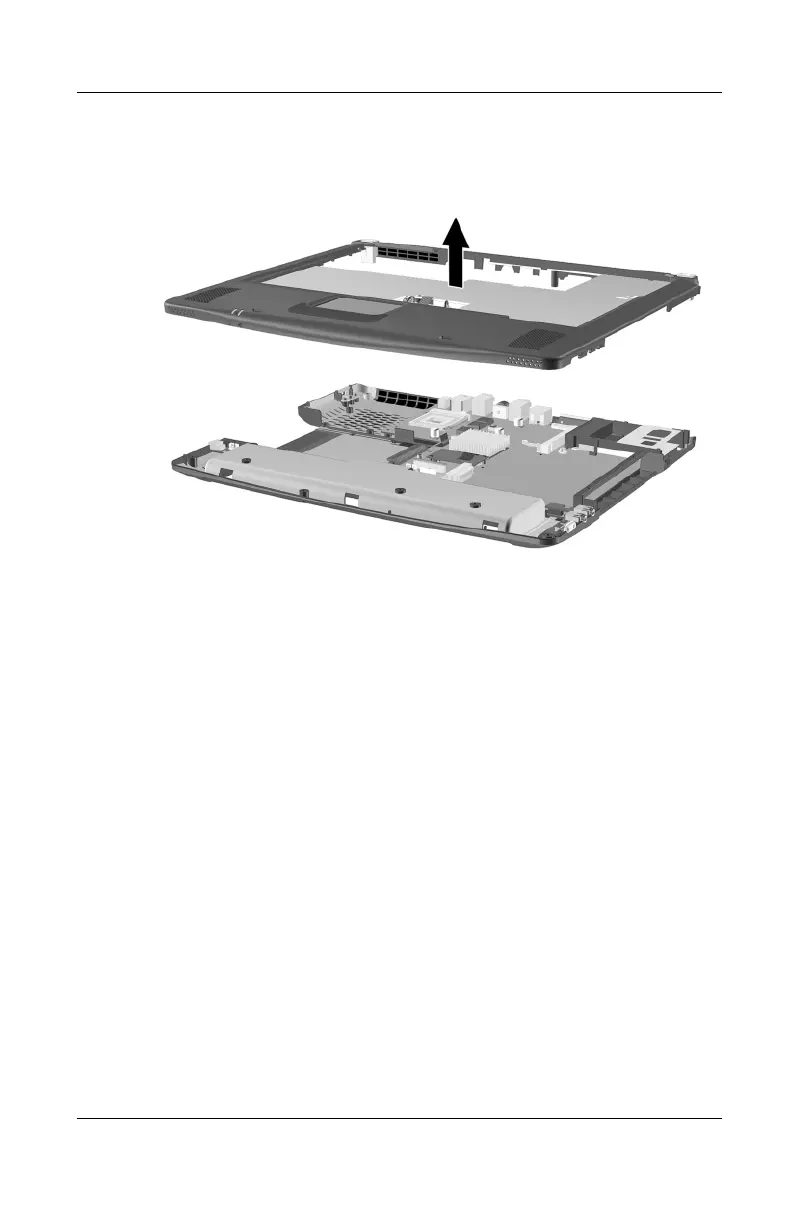

Figure 5-25. Removing the Top Cover
Reverse the preceding procedure to install the top cover.
307503-003.book Page 31 Friday, April 4, 2003 3:37 PM
