Removal and Replacement Procedures
Maintenance and Service Guide 5–35
2. Remove the tape 1 that secures the modem board cable to the
system board (Figure 5-27).
3. Disconnect the modem board cable from the system board 2.
4. Remove the two PM2.0 × 4.5 screws 3 that secure the
modem board to the system board.
5. Remove the modem board 4 from the system board.

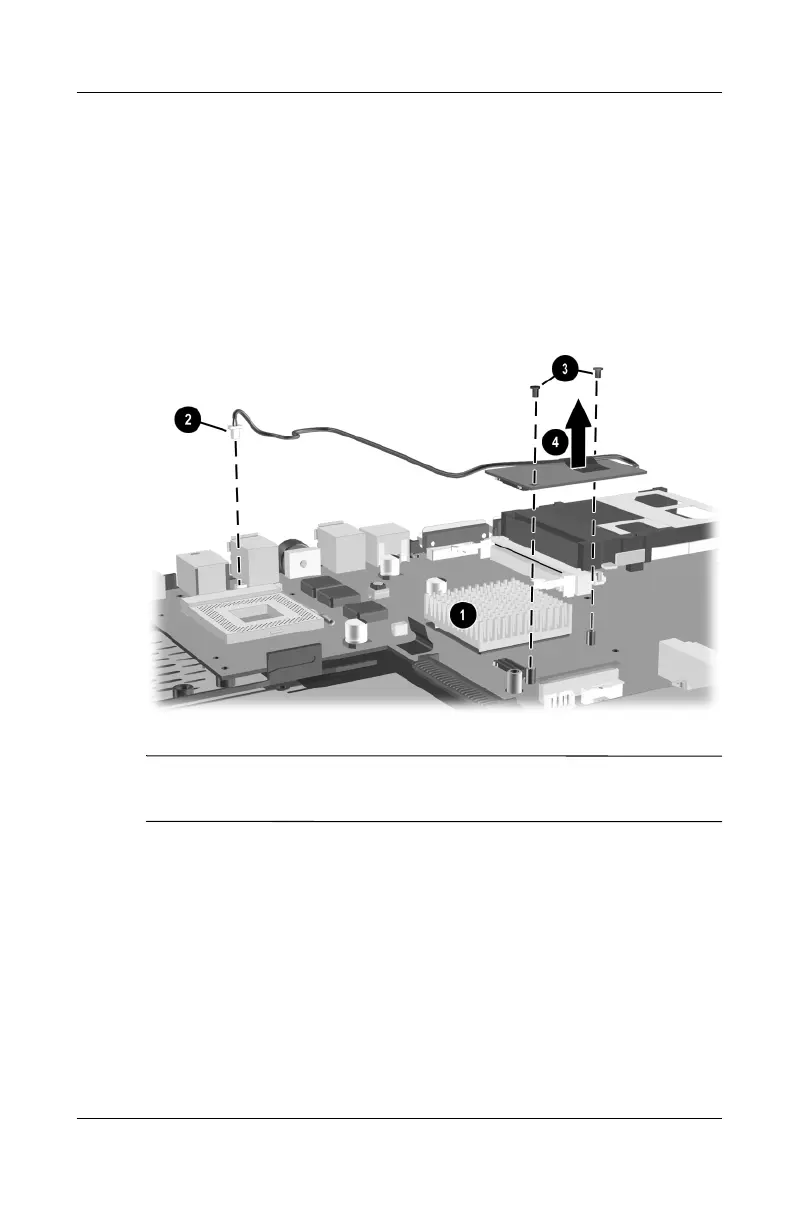

Figure 5-27. Removing the Modem Board
✎
The modem cable is included in the Miscellaneous
Plastics/Hardware Kit, spare part number 310359-001.
Reverse the preceding procedure to install the modem board.
