Compaq 800 Series Maintenance And Service Guide

A–4 Maintenance and Service Guide

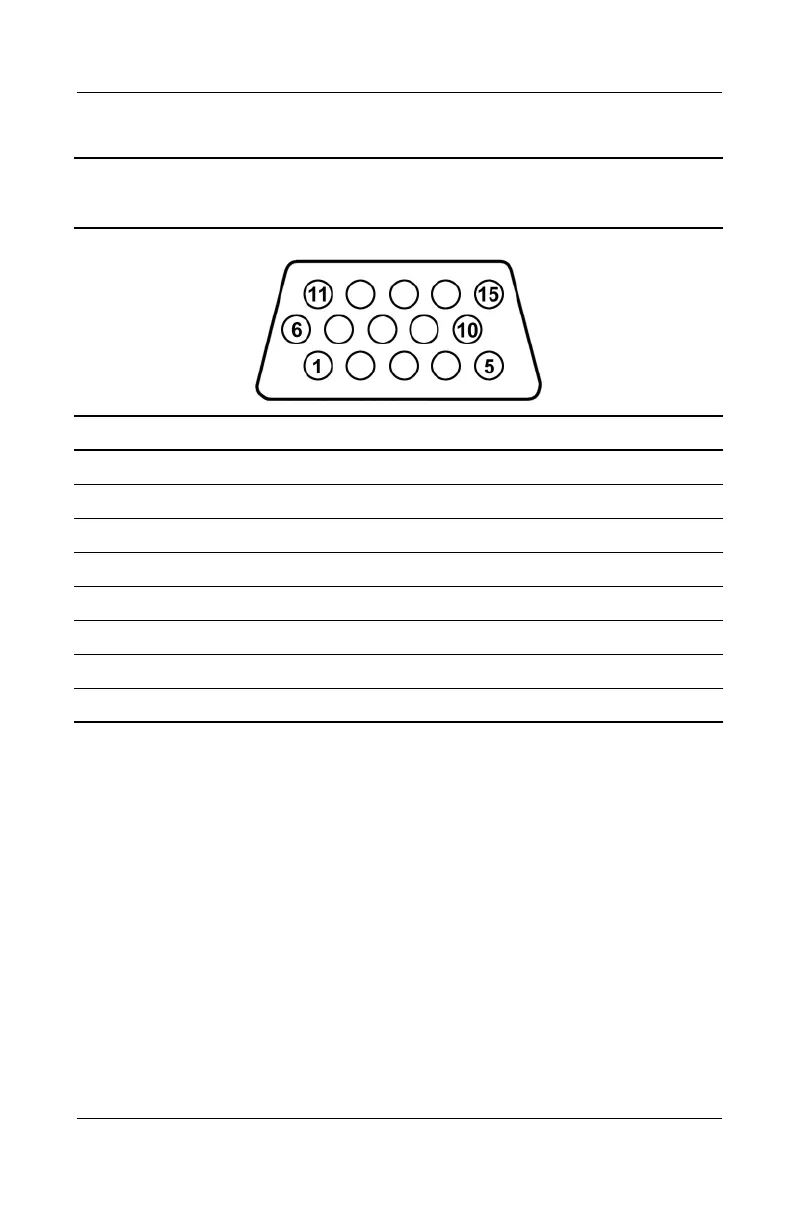

Connector Pin Assignments
Table A-5
External Monitor
Pin Signal Pin Signal
1 Red analog 9 +5 VDC
2 Green analog 10 Ground
3 Blue analog 11 Monitor detect
4 Not connected 12 DDC 2B data
5 Ground 13 Horizontal sync
6 Ground analog 14 Vertical sync
7 Ground analog 15 DDC 2B clock
8 Ground analog
307503-003.book Page 4 Friday, April 4, 2003 3:37 PM
