5–8 Maintenance and Service Guide
Removal and Replacement Procedures
d. Remove the four PM3.0 × 4.0 screws 1 that secure the
hard drive to the hard drive bracket (Figure 5-5).
e. Remove the hard drive 2 from the hard drive carrier.

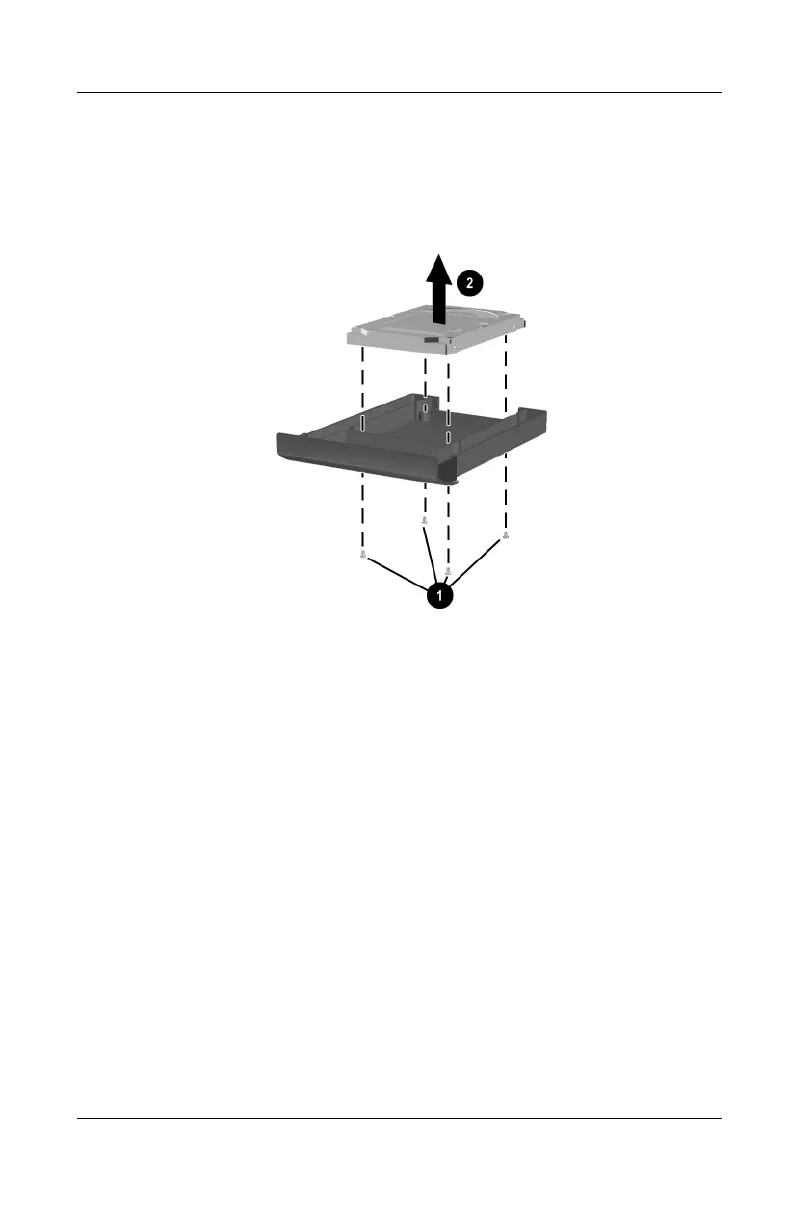

Figure 5-5. Removing the Hard Drive from the Hard
Drive Carrier
Reverse the preceding procedure to install the hard drive into the
hard drive carrier.
