5–14 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the notebook top side up with the front facing you and
open the notebook as far as it will open.
5. Lift the right side of the LED switch cover 1 to separate it
from the base enclosure (Figure 5-11).
6. Swing the top edge of the LED switch cover forward 2 to
separate the cover from the display assembly.

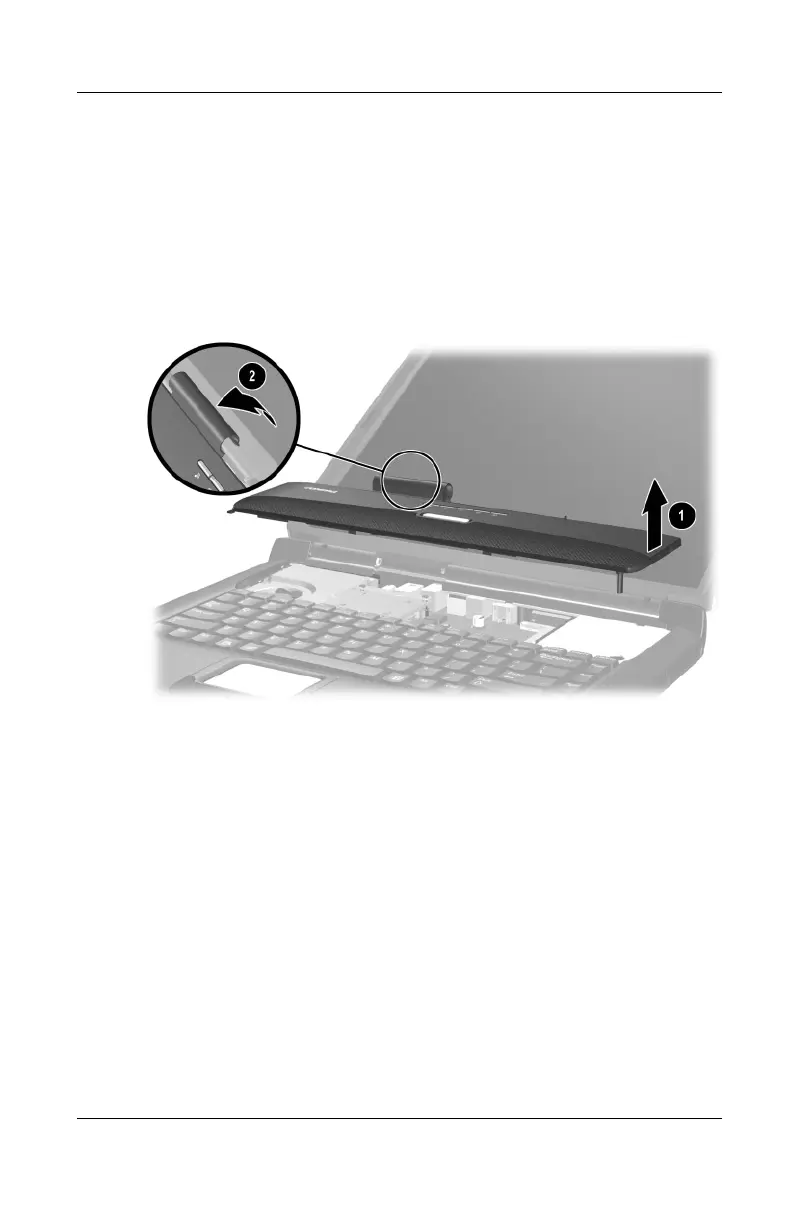

Figure 5-11. Removing the LED Switch Cover
Reverse the preceding procedure to install the LED switch cover.
