Removal and Replacement Procedures
Maintenance and Service Guide 5–19
7. Lift the front edge of the heat sink 1 until it clears the top
cover (Figure 5-16).
8. Slide the heat sink forward 2 until the back of the heat sink
clears the top cover.
9. Remove the heat sink.

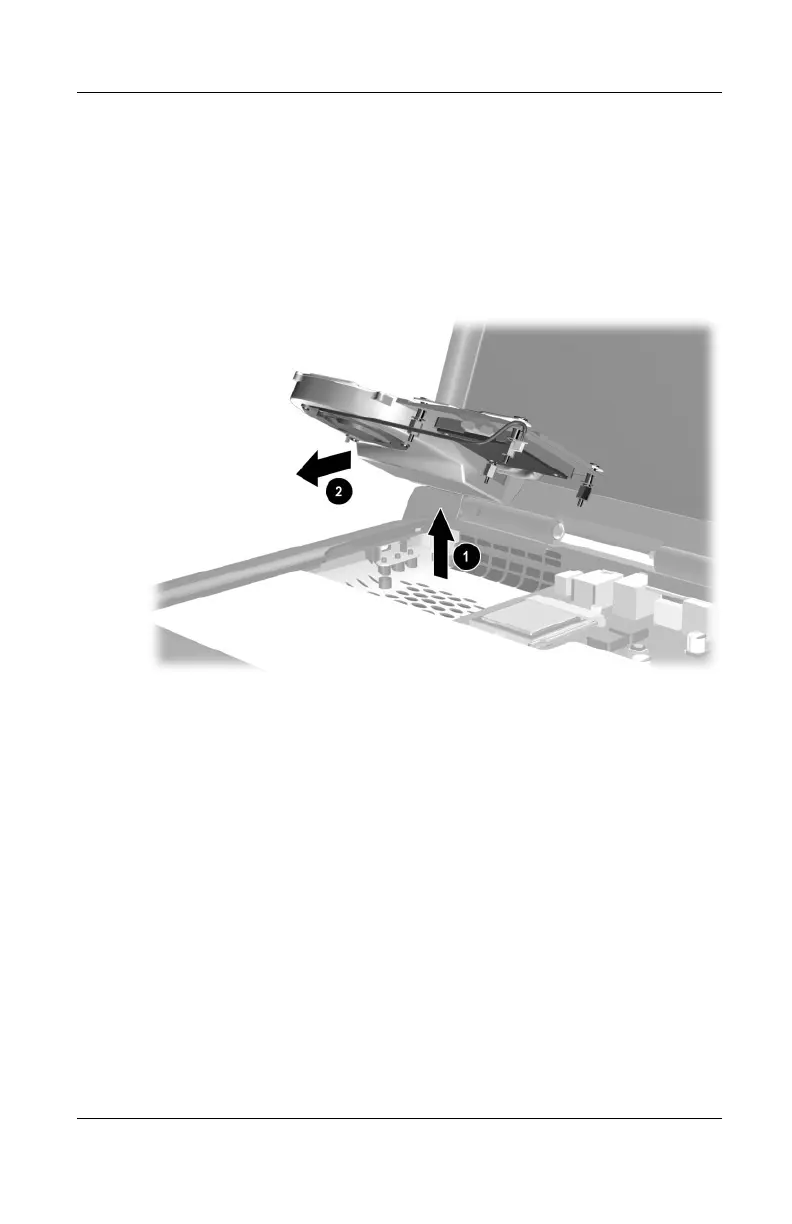

Figure 5-16. Removing the Heat Sink
307503-003.book Page 19 Friday, April 4, 2003 3:37 PM
