Replacing the Front Bezel
Position the chassis in the upright position. Insert the two hooks on the top of the bezel into the
rectangular holes on the chassis (1) then rotate the bottom of the bezel onto the chassis (2) so that the
bottom two hooks on the bezel snap into place.

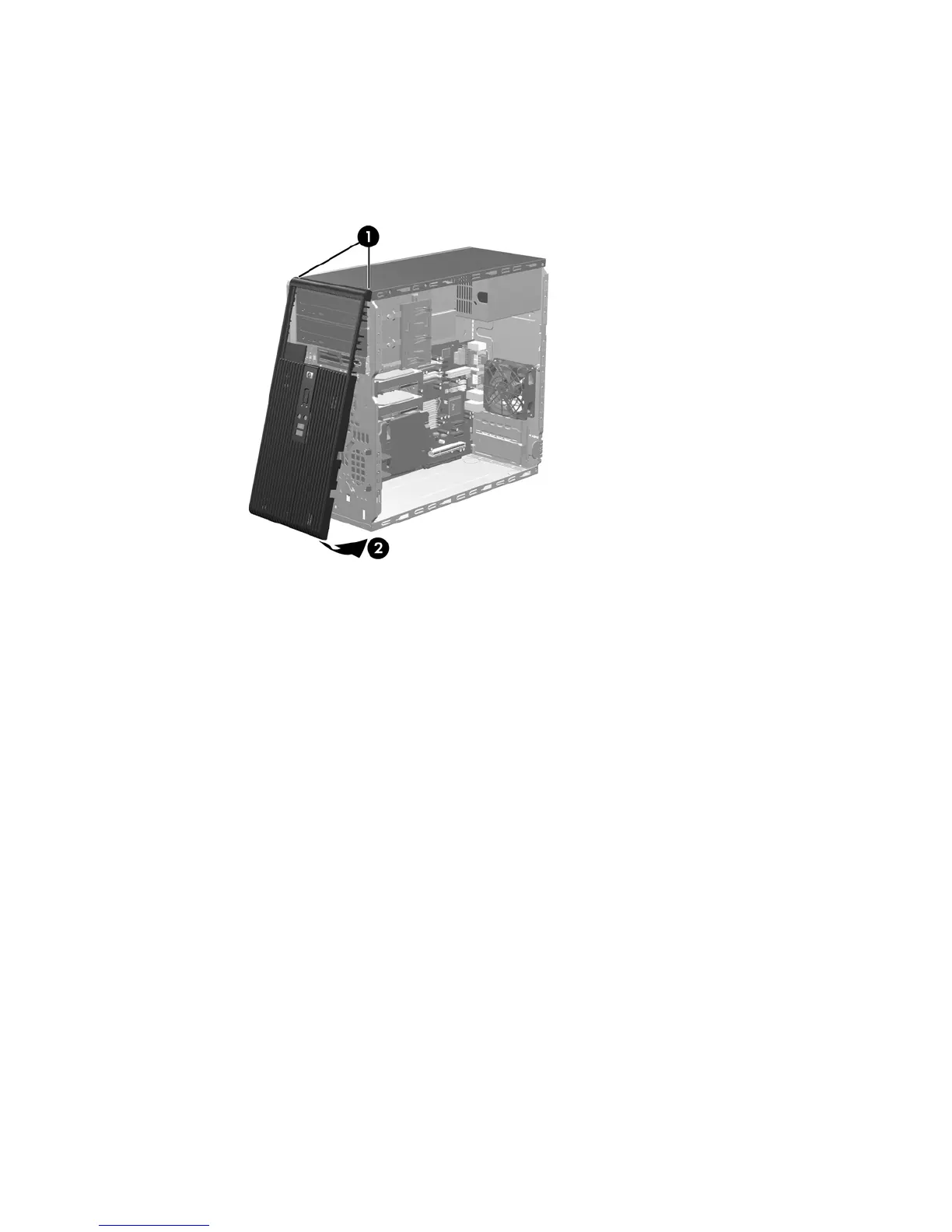

Figure 2-4 Replacing the Front Bezel
ENWW Replacing the Front Bezel 13
