4. Insert the plug end of the security cable into the lock (1) and push the button in (2) to engage the
lock. Use the key provided to disengage the lock.

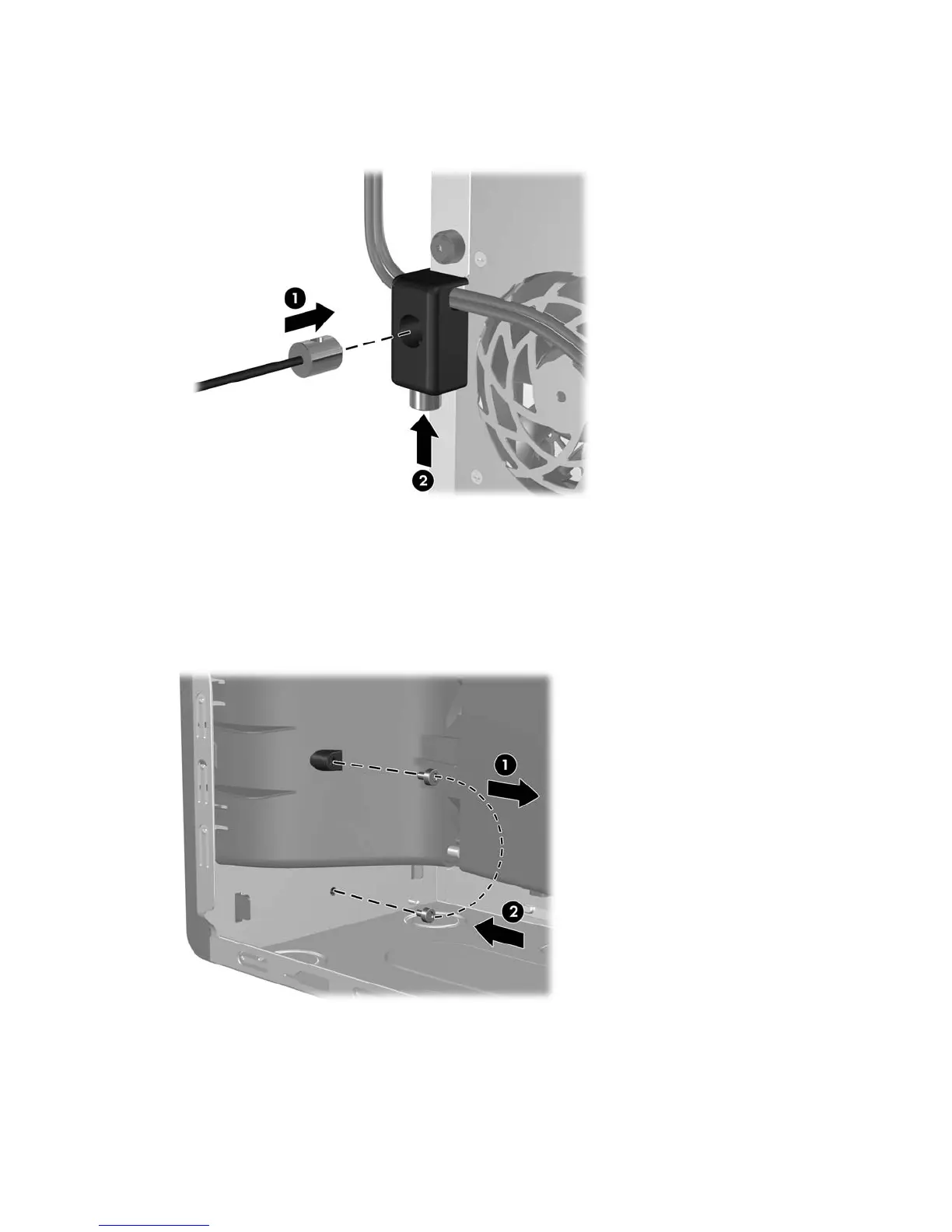

Figure C-6 Engaging the Lock
Front Bezel Security
The front bezel can be locked in place by installing a security screw provided by HP.
The security screw is located on the fan duct inside the chassis. To lock the front bezel, remove the
security screw from the fan duct (1) and install it through the chassis frame into the front bezel (2).
Figure C-7 Installing the Front Bezel Security Screw
50 Appendix C External Security Devices ENWW
