Compaq dc5800 - Microtower PC Hardware Reference Guide

2. Thread the keyboard and mouse cables through the lock.

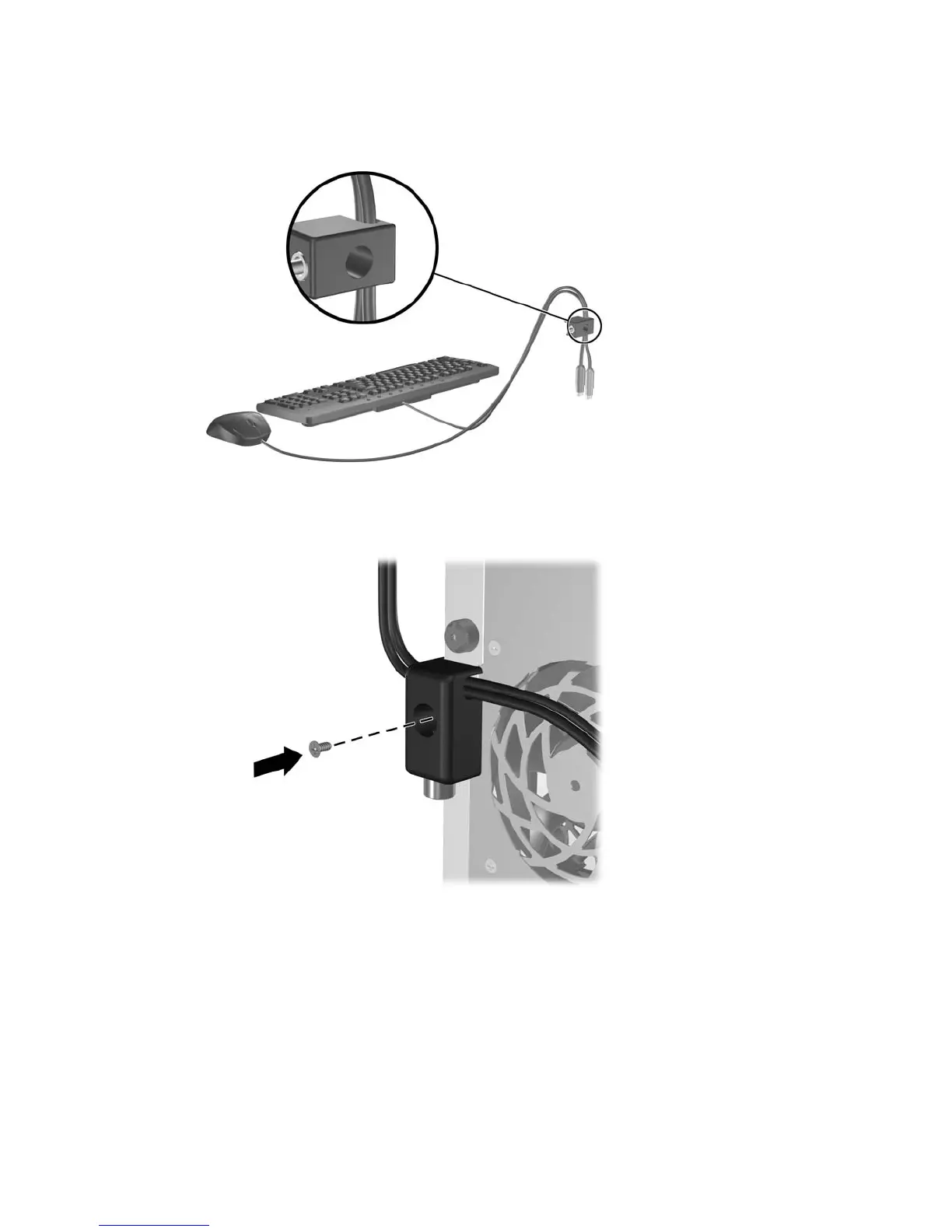

Figure C-4 Threading the Keyboard and Mouse Cables
3. Screw the lock to the chassis using the screw provided.
Figure C-5 Attaching the Lock to the Chassis
ENWW Installing a Security Lock 49

Compaq dc5800 - Microtower PC Specifications

General

Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Memory	Up to 8 GB DDR2 SDRAM
Graphics	Integrated Intel Graphics Media Accelerator 3100
Optical Drive	DVD-ROM, DVD+/-RW
Form Factor	Microtower
Expansion Slots	1 PCI, 2 PCIe x1, 1 PCIe x16
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Ports	VGA, Serial, Parallel, PS/2, Audio in/out
Operating System	Windows Vista Business, Windows XP Professional
Power Supply	300W
USB Ports	8 USB 2.0 (2 front, 6 rear)
