System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

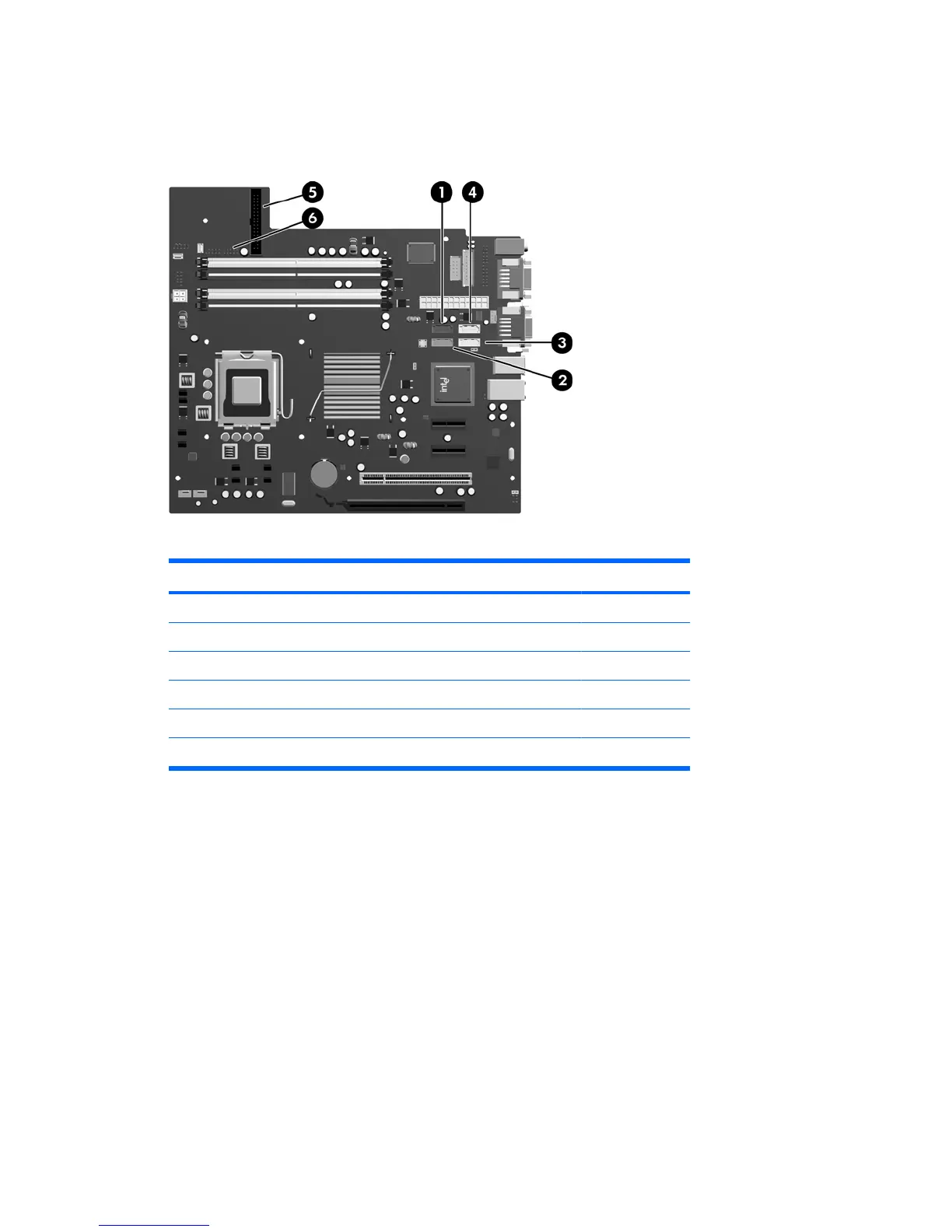

Figure 2-16 System Board Drive Connections
Table 2-4 System Board Drive Connections
No. System Board Connector System Board Label Color
1 SATA0 SATA0 dark blue
2 SATA1 SATA1 white
3 SATA4 SATA4 light blue
4 SATA5 SATA5 orange
5 Diskette Drive FLOPPY black
6 Media Card Reader MEDIA black
ENWW Installing Additional Drives 25
