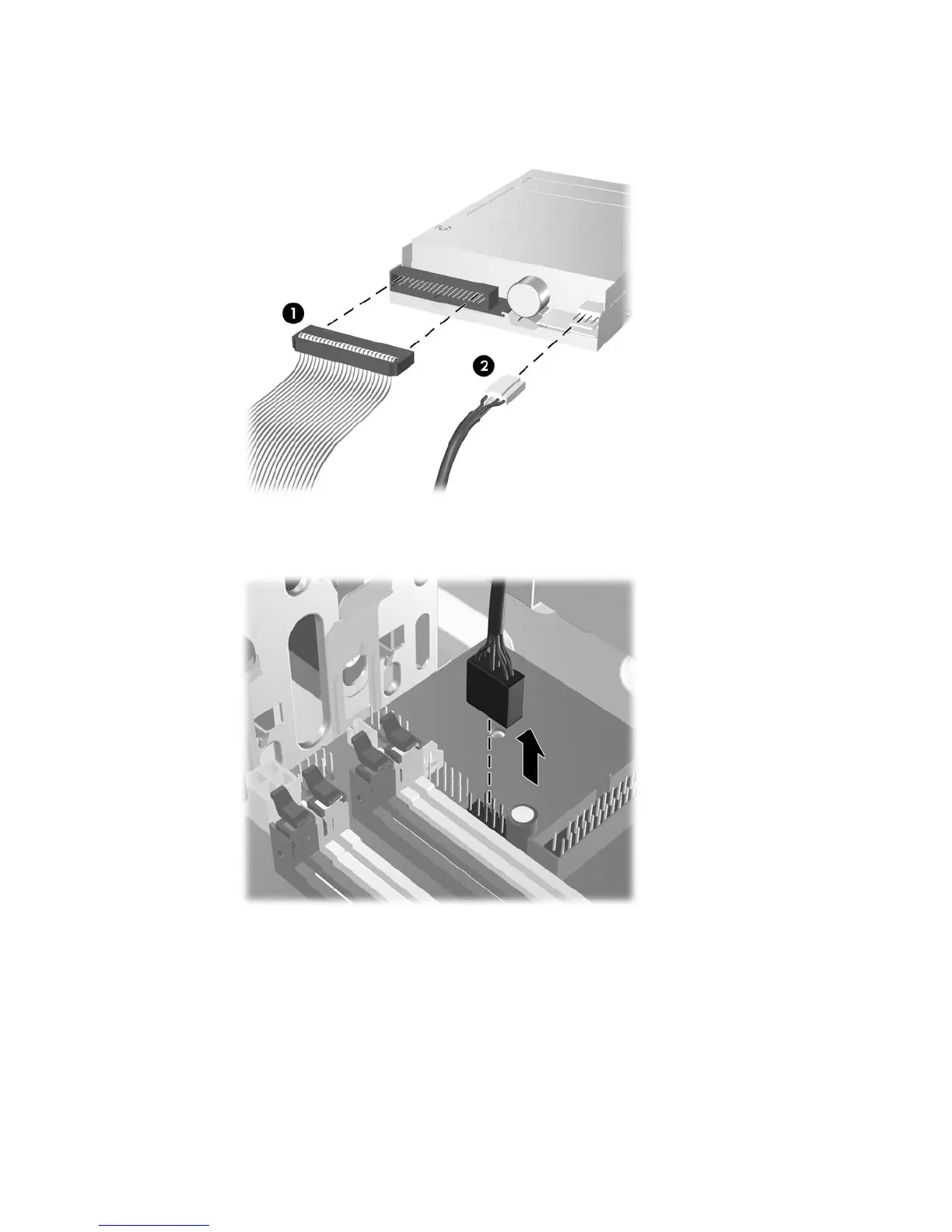

b. If you are removing a diskette drive, disconnect the data cable (1) and power cable (2) from
the back of the drive.
Figure 2-18 Disconnecting the Diskette Drive Cables
c. If you are removing a media card reader, disconnect the USB cable from the system board.
Figure 2-19 Disconnecting the Media Card Reader Cable
ENWW Installing Additional Drives 27
