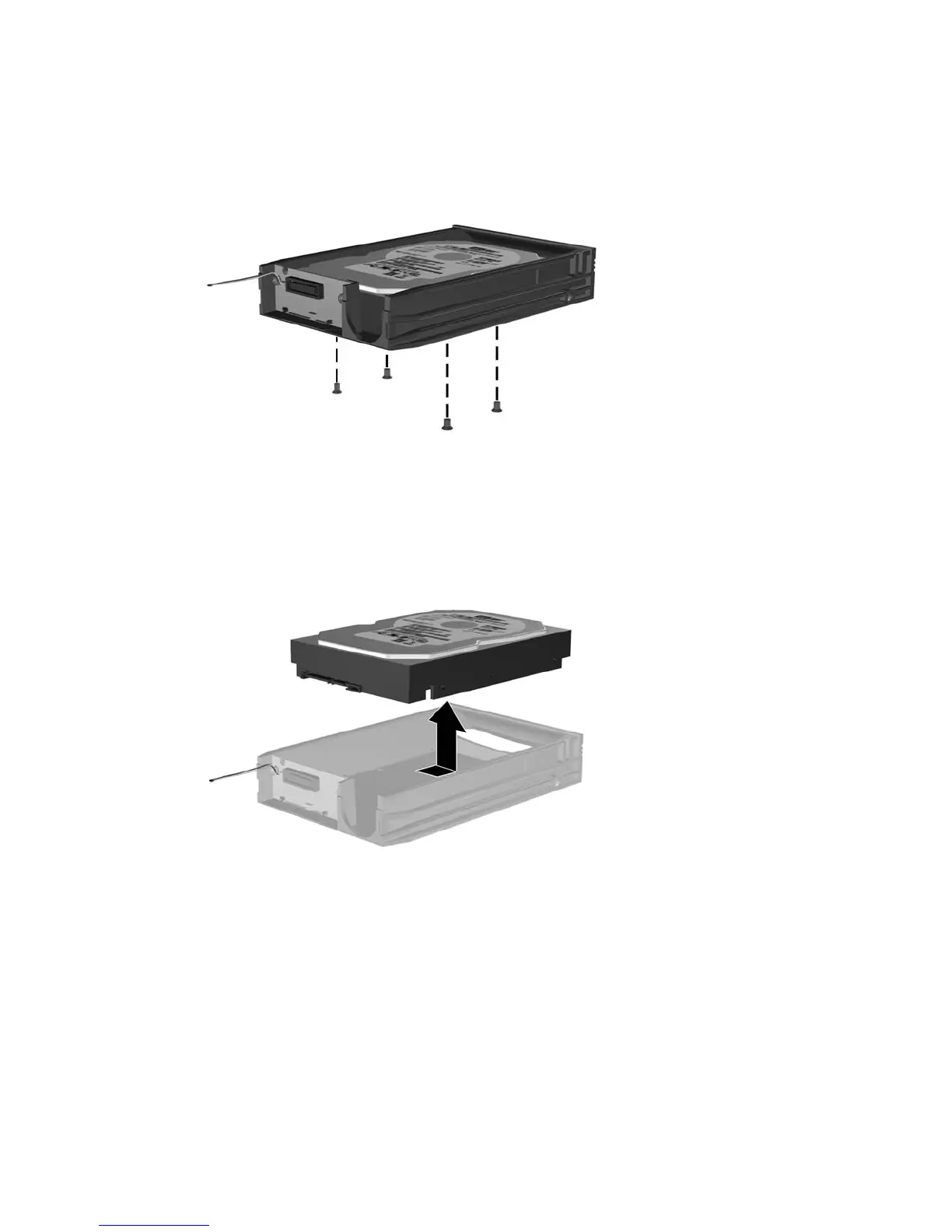

4. Remove the four screws from the bottom of the hard drive carrier.
Figure 2-33 Removing the Security Screws
5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Figure 2-34 Removing the Hard Drive
ENWW Installing Additional Drives 37
