Table 3 RAID 0 with two hard drives (Striped)
In the previous table, each “Data Segment n” represents a group of data, known as a strip. In this case,
each row represents a stripe. RAID 0 represented in the table above shows how information is segmented,
made into chunks or strips, and stored across the stripes of the hard drive members of this RAID volume.

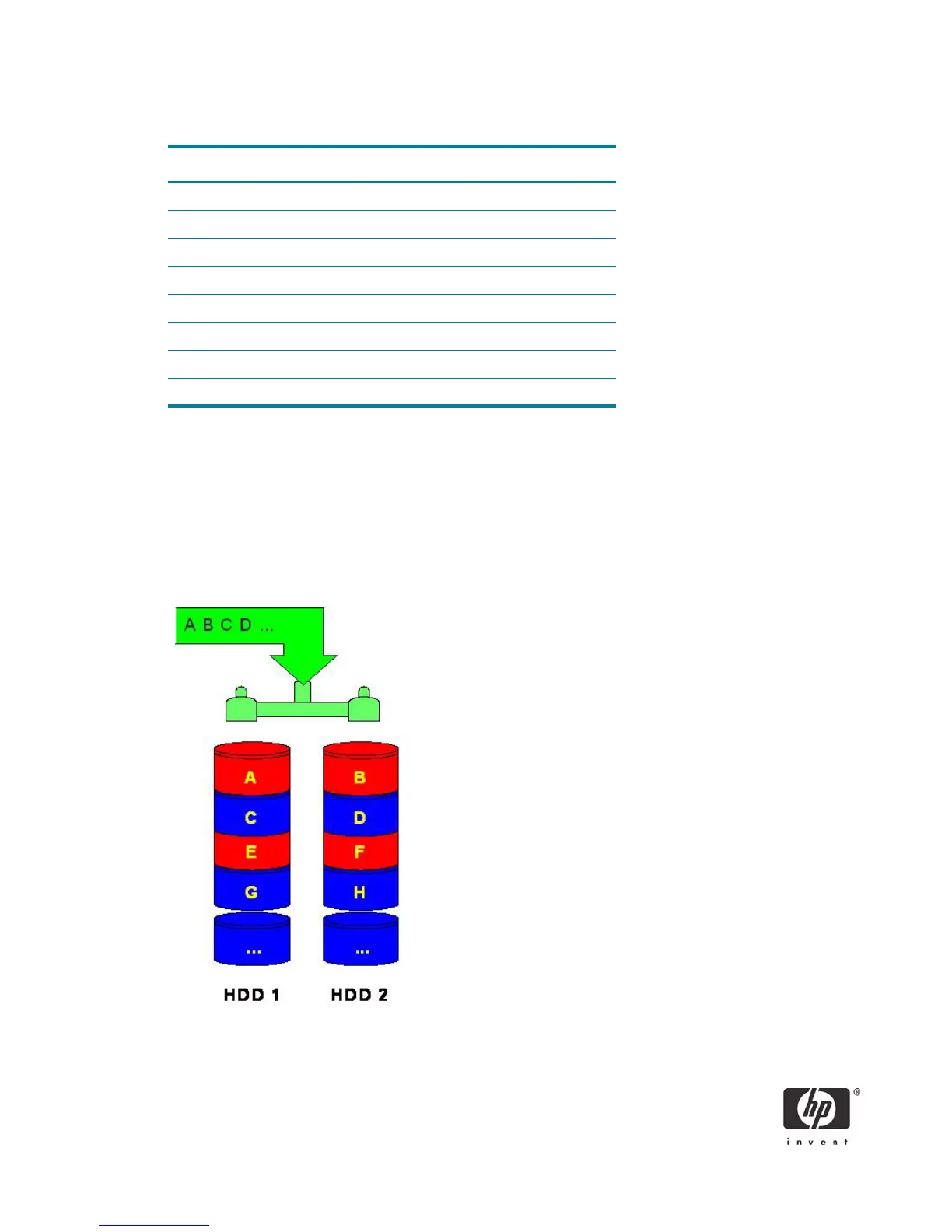

To better illustrate the concept of RAID 0 and striping, the following graphic shows how a sequence of
data “ABCD...” is stored in a RAID 0 mode. In this example, each letter represents a segment or strip. The
graphic shows how the various pieces of the information go to different hard drives. If any segment of
RAID 0 fails, all information from all members is lost.
Figure 1 Performance - RAID 0 with two hard drives
First Disk Second Disk
Data Segment 1 Data Segment 2
Data Segment 3 Data Segment 4
Data Segment 5 Data Segment 6
Data Segment 7 Data Segment 8
Data Segment 9 Data Segment 10
Data Segment 11 Data Segment 12
Data Segment 13 Data Segment 14
Data Segment 15 Data Segment 16
