Compaq dc7700 - Convertible Minitower PC Firmware Update

9
ously assigned password. You may need to do this if the administrative/setup password is deleted from
the client machines. To assign a new password, run the Assign Password utility again.
How do I update the BIOS when not running Windows XP, Vista, or DOS?

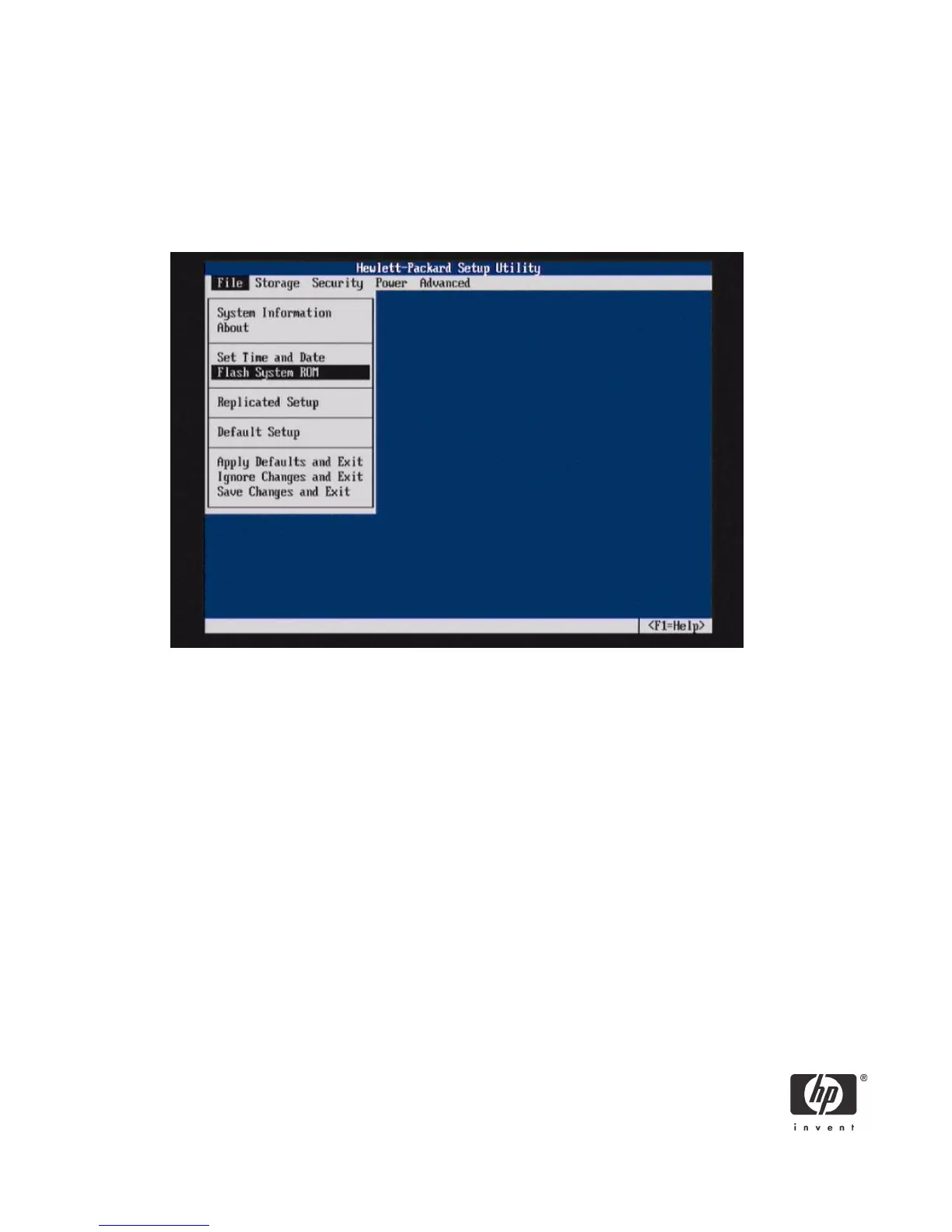

You can update BIOS using the F10 setup “Flash System ROM” feature. Reboot the PC and press F10 to
enter setup. In the File menu, select Flash System ROM.
This flash utility will present the user with the option to select the media containing the BIOS image file
(7E1_MMmm.bin). F10 ROM based flash can accept the binary file from the root directory of any remov-
able media such as USB and CD. Use the BIOS.iso file included in the softpaq to create a BIOS image
CD. When flashing with F10 ROM based flash, the CD media must be El-Torito compatible.

Compaq dc7700 - Convertible Minitower PC Specifications

General

Chipset	Intel Q965 Express
Memory Slots	4 DIMM slots
Form Factor	Convertible Minitower
Processor	Intel Core 2 Duo, Pentium D
Memory	Up to 8 GB DDR2 SDRAM
Storage	80GB, 160GB, 250GB, 500GB HDD
Graphics	Intel GMA 3000
Optical Drive	DVD-ROM, DVD+/-RW
Audio	Integrated High Definition Audio
Network	Integrated Intel Gigabit Network Connection
Expansion Slots	1 PCIe x16, 1 PCI Express x1, 2 PCI
Ports	USB 2.0, Serial, Parallel, PS/2, Audio
SATA Ports	4
Operating System	Windows XP Professional, Windows Vista Business
Power Supply	365W
