SECTION 6: ELECTRICAL PARTS LIST -
A
Board (AEP Model made in UK only)
FERRITE BEAD
FB102 1-500-419-21 FERRITE 0UH
FB103 1-500-419-21 FERRITE 0UH
FB202 1-500-419-21 FERRITE 0UH
FB203 1-500-419-21 FERRITE 0UH
FB302 1-500-419-21 FERRITE 0UH
FB303 1-500-419-21 FERRITE 0UH
IC
IC006 8-759-233-66 IC TC74HCT04AF(EL)
CHIP CONDUCTOR
JR034 1-216-296-91 SHORT 0
REF. NO. PART NO. DESCRIPTION REMARK
RESISTOR
R111 1-249-404-00 CARBON 82 5% 1/4W
R117 1-216-025-91 RES-CHIP 100 5% 1/10W
R118 1-216-019-00 RES-CHIP 56 5% 1/10W
R133 1-216-295-91 SHORT 0
R211 1-249-405-11 CARBON 100 5% 1/4W
R217 1-216-025-91 RES-CHIP 100 5% 1/10W
R218 1-216-019-00 RES-CHIP 56 5% 1/10W
R233 1-216-295-91 SHORT 0
R311 1-249-405-11 CARBON 100 5% 1/4W
R317 1-216-025-91 RES-CHIP 100 5% 1/10W
R333 1-216-295-91 SHORT 0
REF. NO. PART NO. DESCRIPTION REMARK

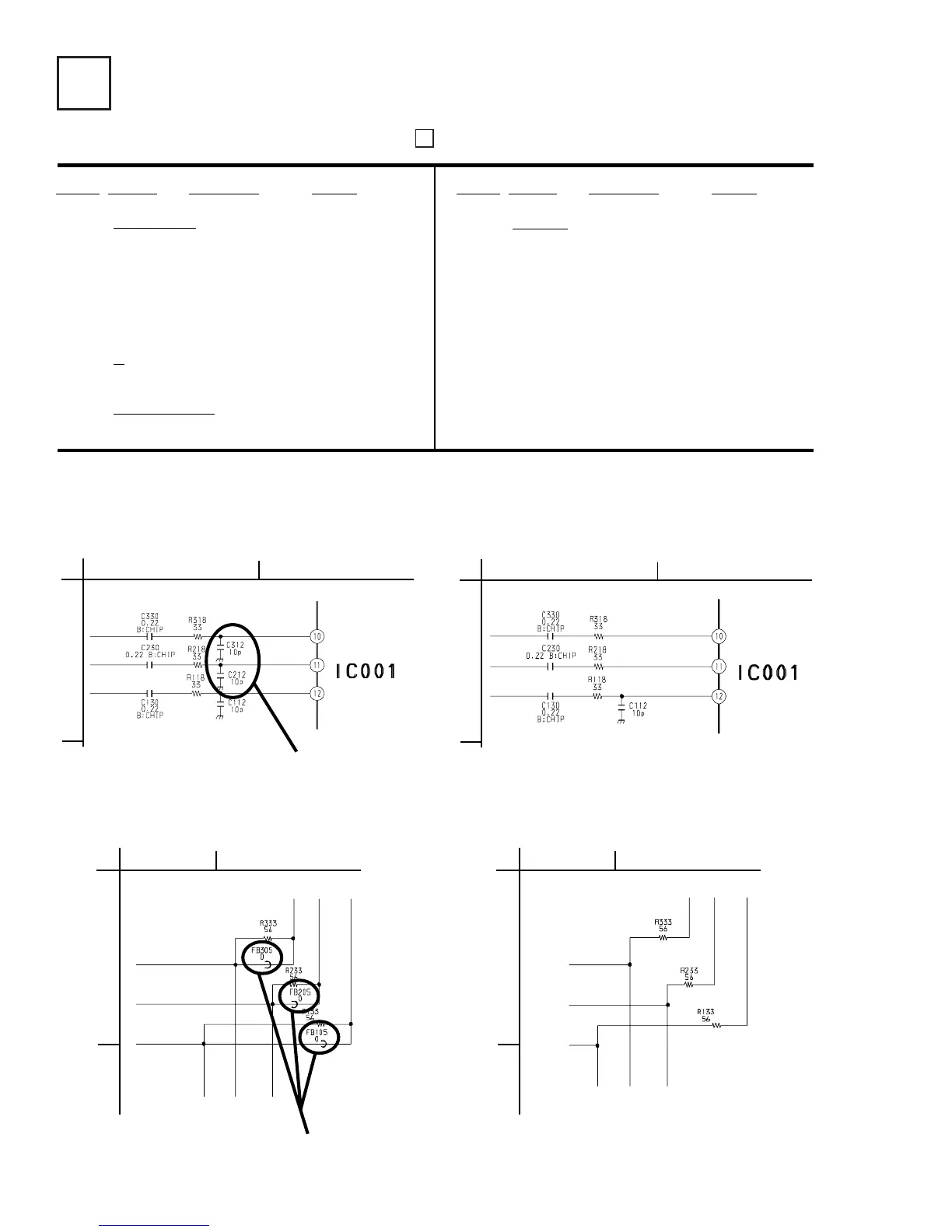

SECTION 4: A BOARD SCHEMATIC DIAGRAM (Page 23) (AEP Model made in UK only)
67
C
Old
C
New
Delete C212 & C312 from
C-6 area of schematic
67
Old
11
B
12
C
New
11
B
12
C
Delete FB105, FB205 & FB305
from B-12 area of schematic
