SECTION 6: ELECTRICAL PARTS LIST -
D
Board (AEP Model made in UK only)
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
CAPACITOR
C565 1-163-259-91 CERAMIC CHIP 220PF 5% 50V
C660 1-104-341-11 MYLAR 0.1UF 10% 250V
DIODE
D405 8-719-911-19 DIODE 1SS119-25TD
D519 8-719-976-96 DIODE UDZ-TE-17-4.7B
D608 8-719-911-19 DIODE 1SS119-25TD
D617 8-719-911-19 DIODE 1SS119-25TD
D626 8-719-911-19 DIODE 1SS119-25TD
D628 8-719-911-19 DIODE 1SS119-25TD
D634 8-719-911-19 DIODE 1SS119-25TD
D635 8-719-911-19 DIODE 1SS119-25TD
D636 8-719-110-31 DIODE RD12ES-T1B2
D701 8-719-911-19 DIODE 1SS119-25TD
D702 8-719-911-19 DIODE 1SS119-25TD
D703 8-719-911-19 DIODE 1SS119-25TD
D1021 8-719-800-76 DIODE MA153-TX
D1022 8719-800-76 DIODE MA153-TX
IC
IC1001 8-759-656-96 IC CXD9523S/JCN
TRANSISTOR
Q514 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119
Q515 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119
Q516 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119
RESISTOR
R408 1-216-081-00 RES-CHIP 22K 5% 1/10W
R514 1-249-393-11 CARBON 10 5% 1/4W
SPARK GAP
SG601 1-519-422-11 GAP, SPARK
VARISTOR
VA601 1-801-268-51 VARISTOR ERZV14D471

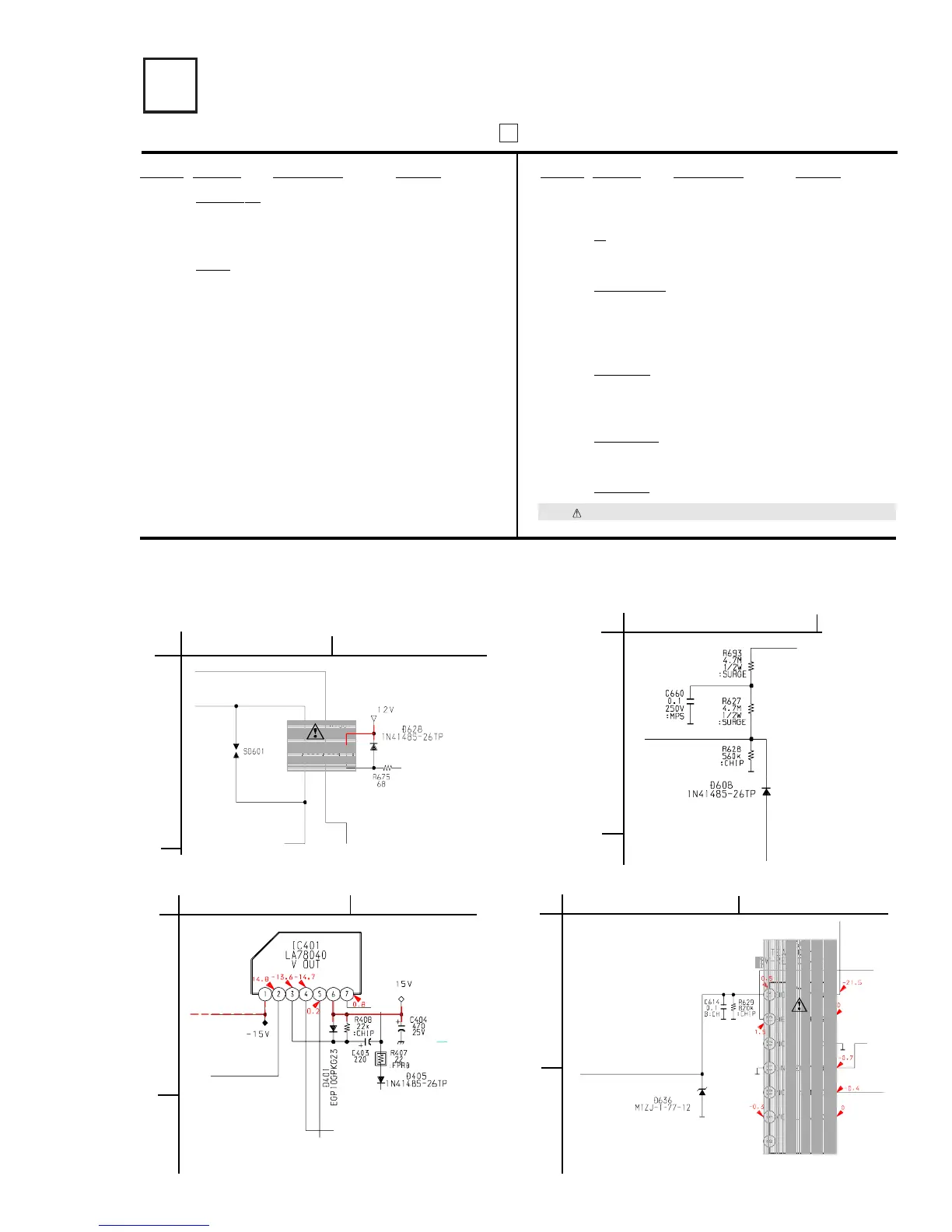

SECTION 4: D BOARD SCHEMATIC DIAGRAM (Page 15) (AEP Model made in UK only)
