REMOVAL & REPLACEMENT
Mass Storage Devices
Removing the Drive Cage Assembly
Removal
1
Perform preparation
procedures.
2
Remove the Left Easy Access
panel.
3
Remove the left plastic
subpanel.
4
Remove the Top Access Panel.
5

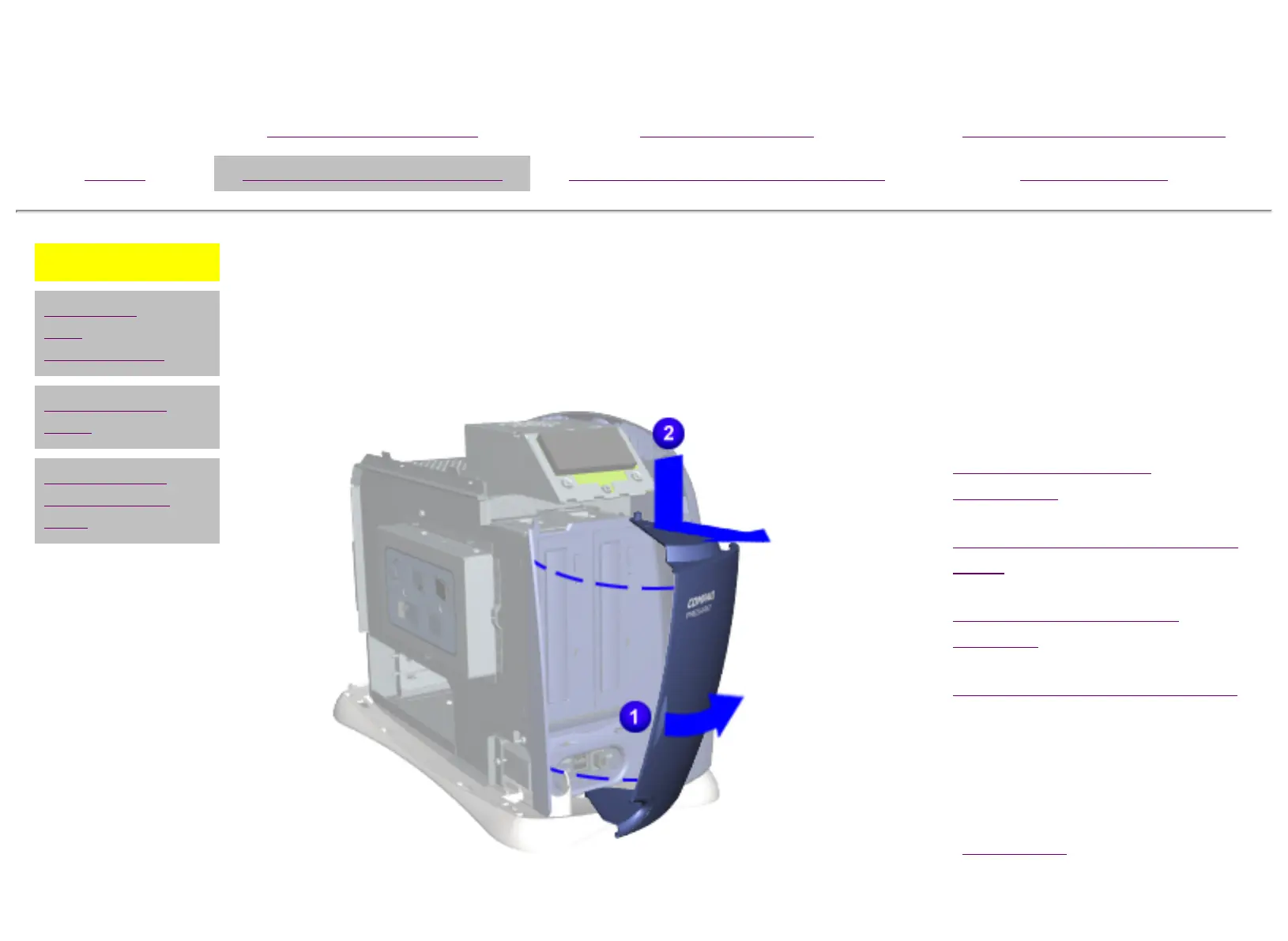

Open (1) and (2) remove the
front door from the hooks on
the chassis.
Next Step
