How to Adjust Settings

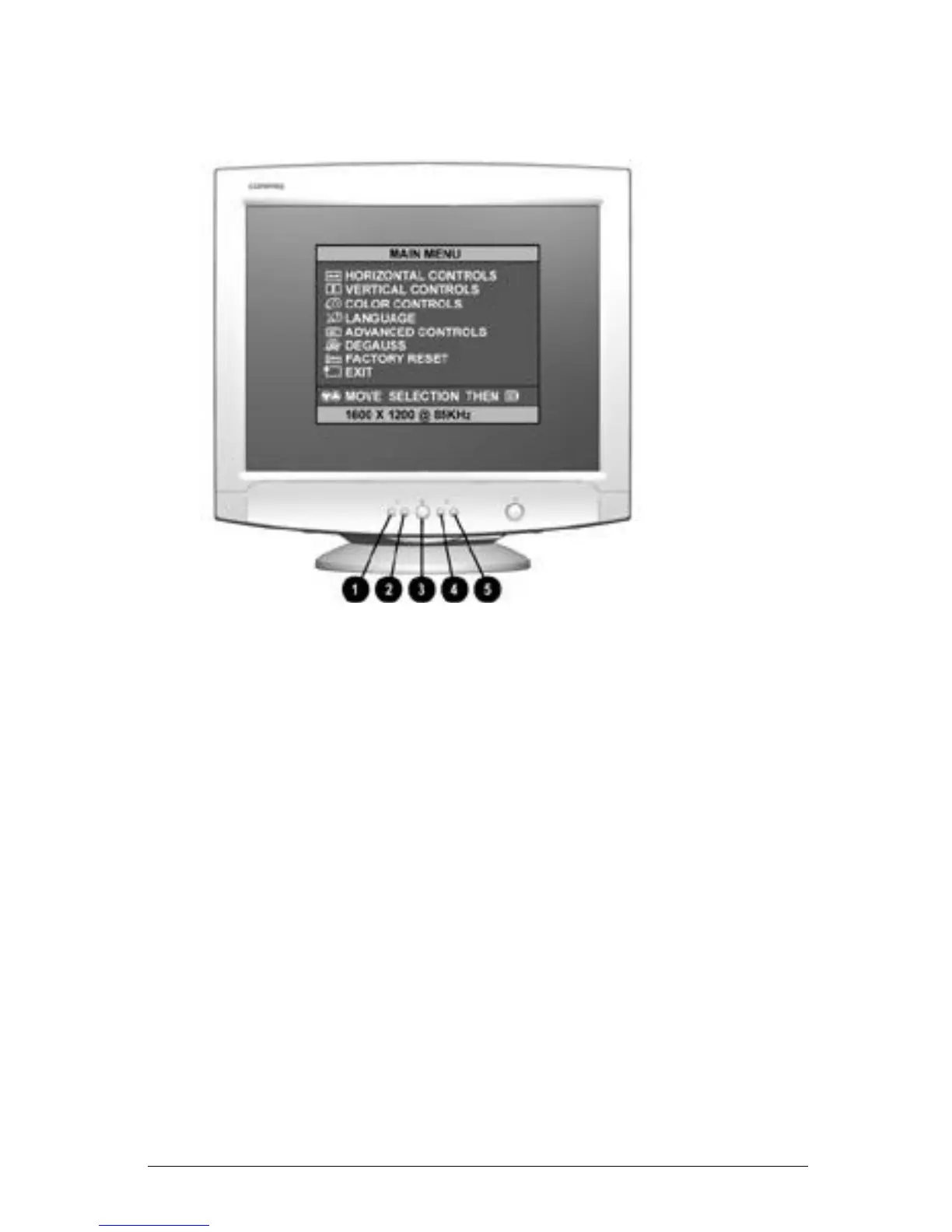

To launch the on-screen display Main Menu:
1. Press the Select button 3 on the monitor front panel. The Main
Menu will display on the monitor screen.
2. To select an item from the Main Menu, scroll down by pressing
the Down button 1 located on the monitor front panel. To reverse
or back up, press the Up button
2.
3. Highlight your choice and press the Select button 3 again to
choose it.
4. For example, to change the vertical size and position of the visible
display area:
A. Press the Select button 3 to display the Main Menu.
B. Press the Down button 1 to highlight the Vertical Controls
menu, and press the Select button 3 to choose it. The
Vertical Controls menu displays, with the Adjust Position
feature highlighted.
