5–42 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the computer upside down with the front toward you.

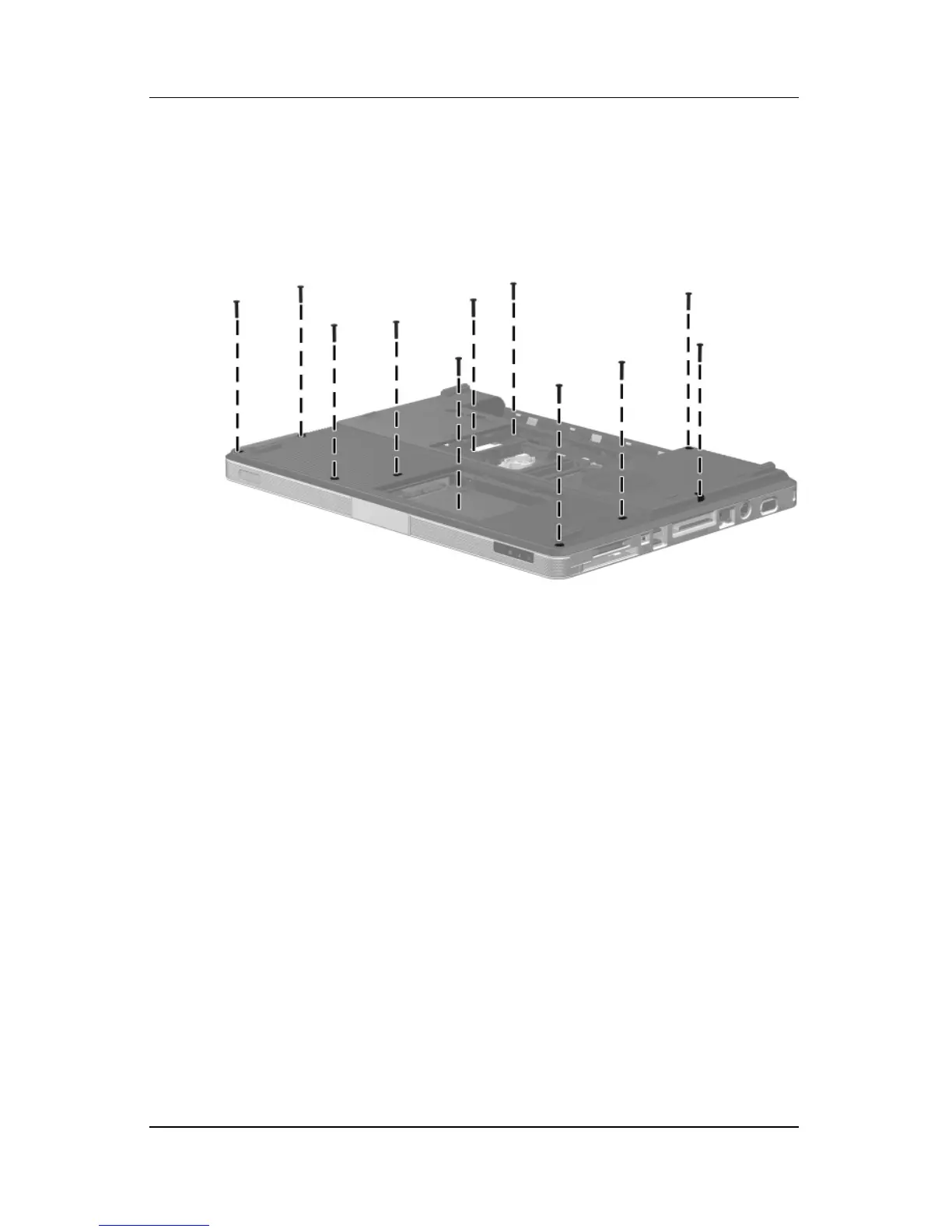

5. Remove the eleven Phillips PM2.5×13.0 screws that secure
the base enclosure to the computer.
Removing the Base Enclosure Screws, Part 2
