Removal and Replacement Procedures
Maintenance and Service Guide 5–43

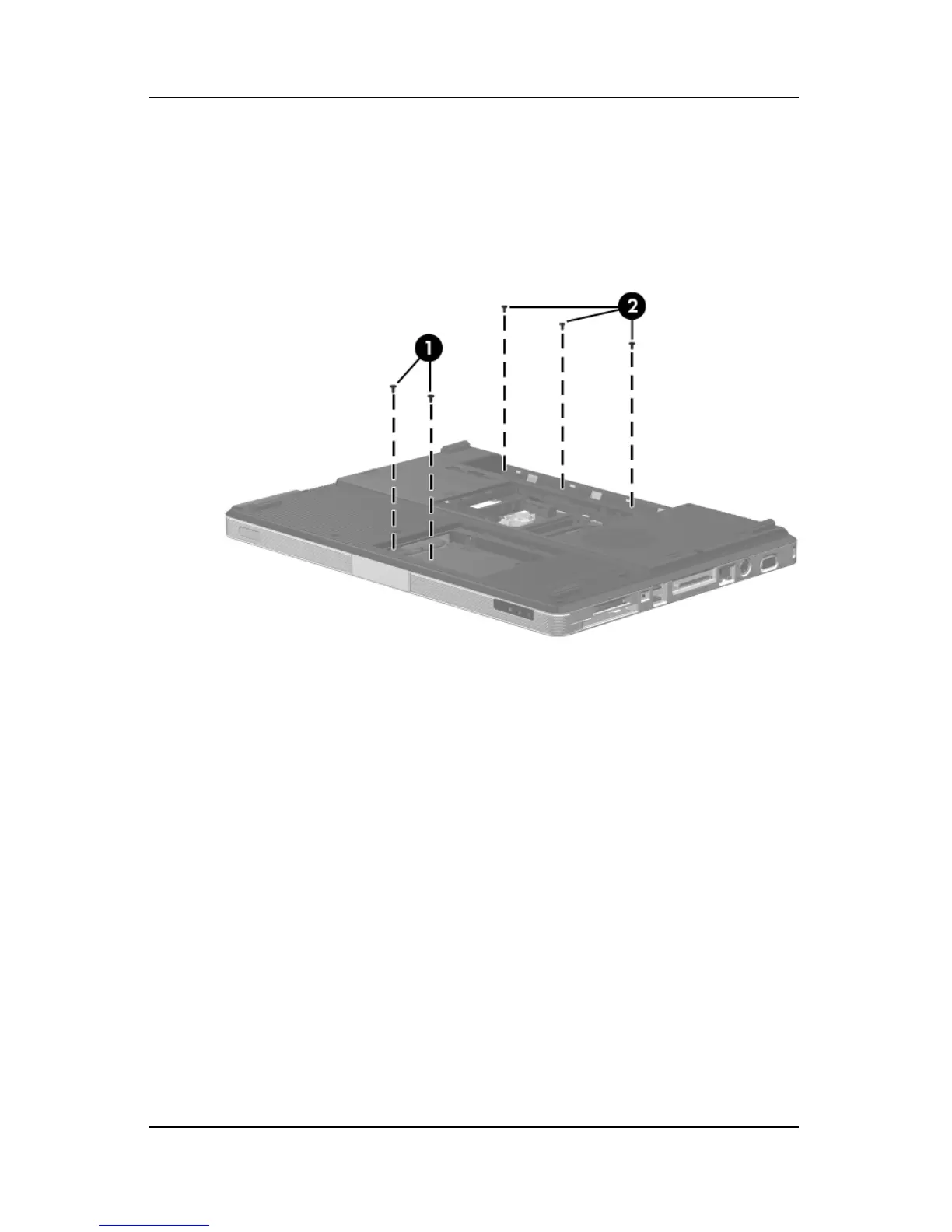

6. Remove the two Phillips PM2.5×5.0 screws 1 in the hard
drive bay and and the three Phillips PM2.5×5.0 screws 2 in
the battery bay that secure the base enclosure to the
computer.

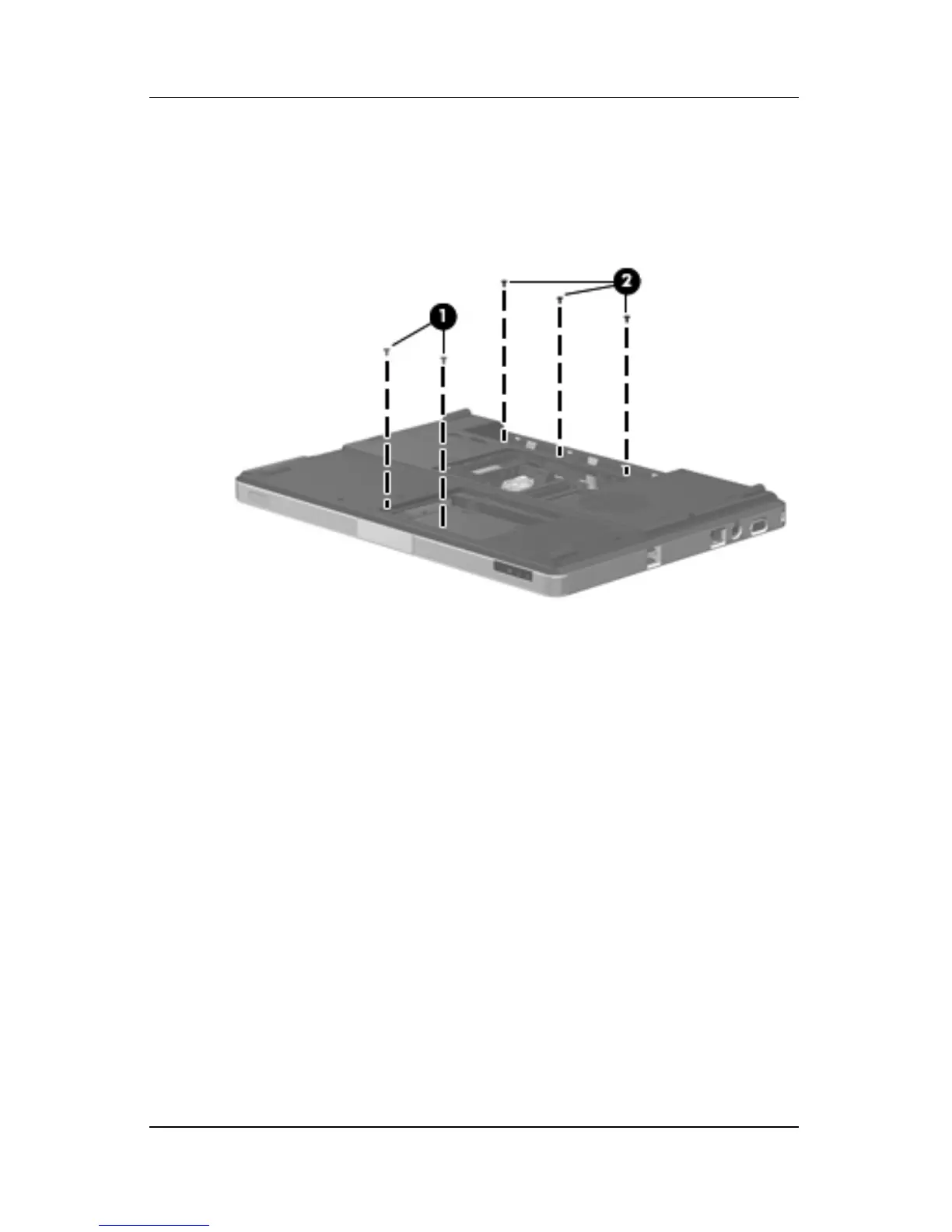

Removing the Base Enclosure Screws, Part 3
