Compart VLINE-80 - Power Port Definition; Other Optional Interface; Serial Interface

22

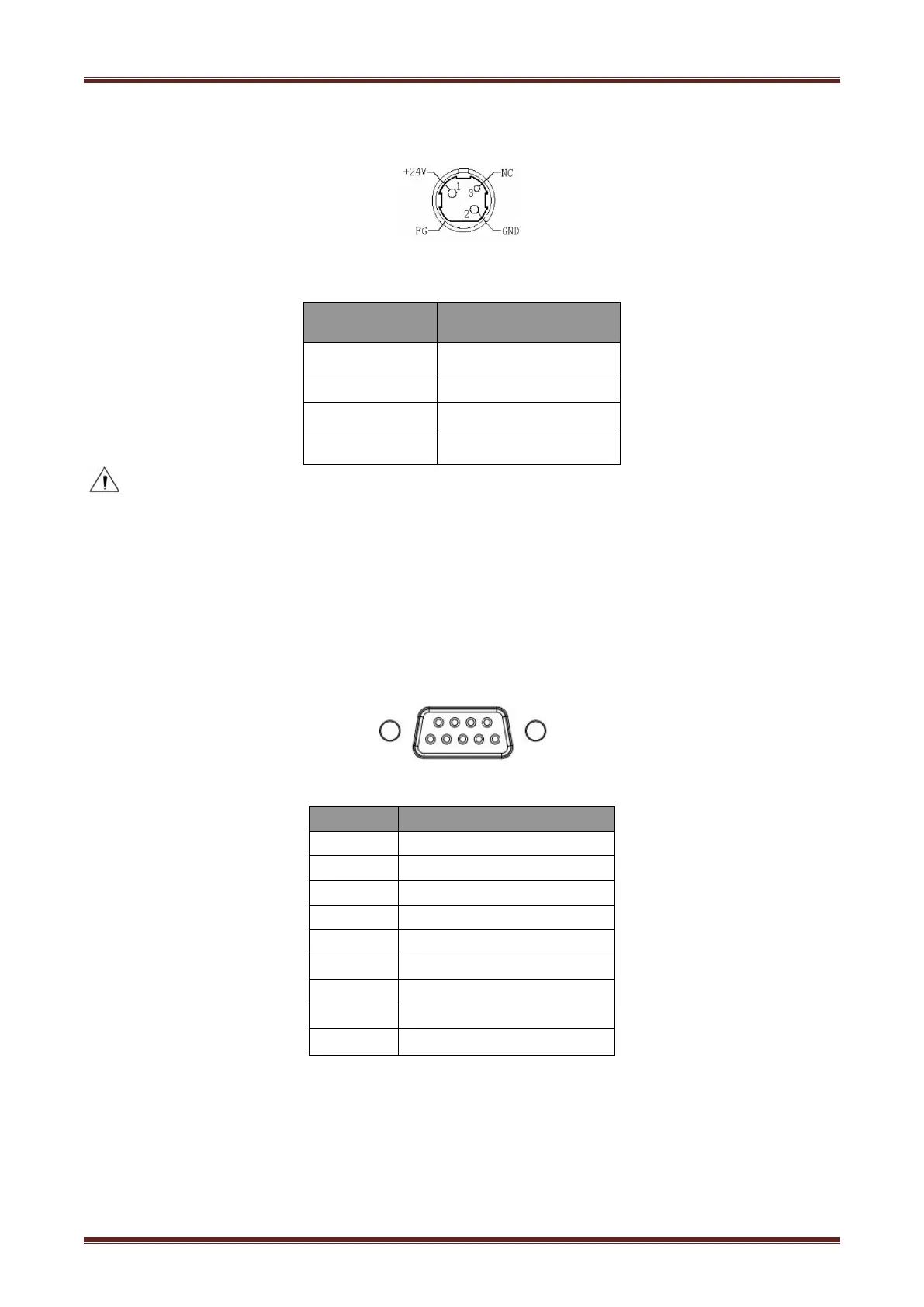

5.3 Power Port Definition
Figure 5.3
PIN NO.
Signal Name
1
+24V
2
GND
3
N.C
SHELL
F.G
Note ：

Strictly prohibit unplug the cable while the printer is power on.

When arranging the line of communication, you have to avoid paralleling with the strong
current.
 you have to use the shielded communication line.
5.4 Other Optional Interface
5.4.1 Serial Interface
Printer VLINE80-2 serial interface is compatible with RS-232 standard, with 9 pin socket.
Figure 5.4.1 a
PIN NO.
Signal Name
1
-
2
TXD
3
RXD
4
-
5
GND
6
RTS
7
CTS
8
RTS
9
-
