VI HOW IT WORKS
1. Description of the stimulator
You are strongly advised to carefully read the counter-indications and safety measures
described at the start of this manual (chapter 1: “Warnings”) prior to using your stimulator.
G
H
A
B
C
F
D
1 2 3 4
E

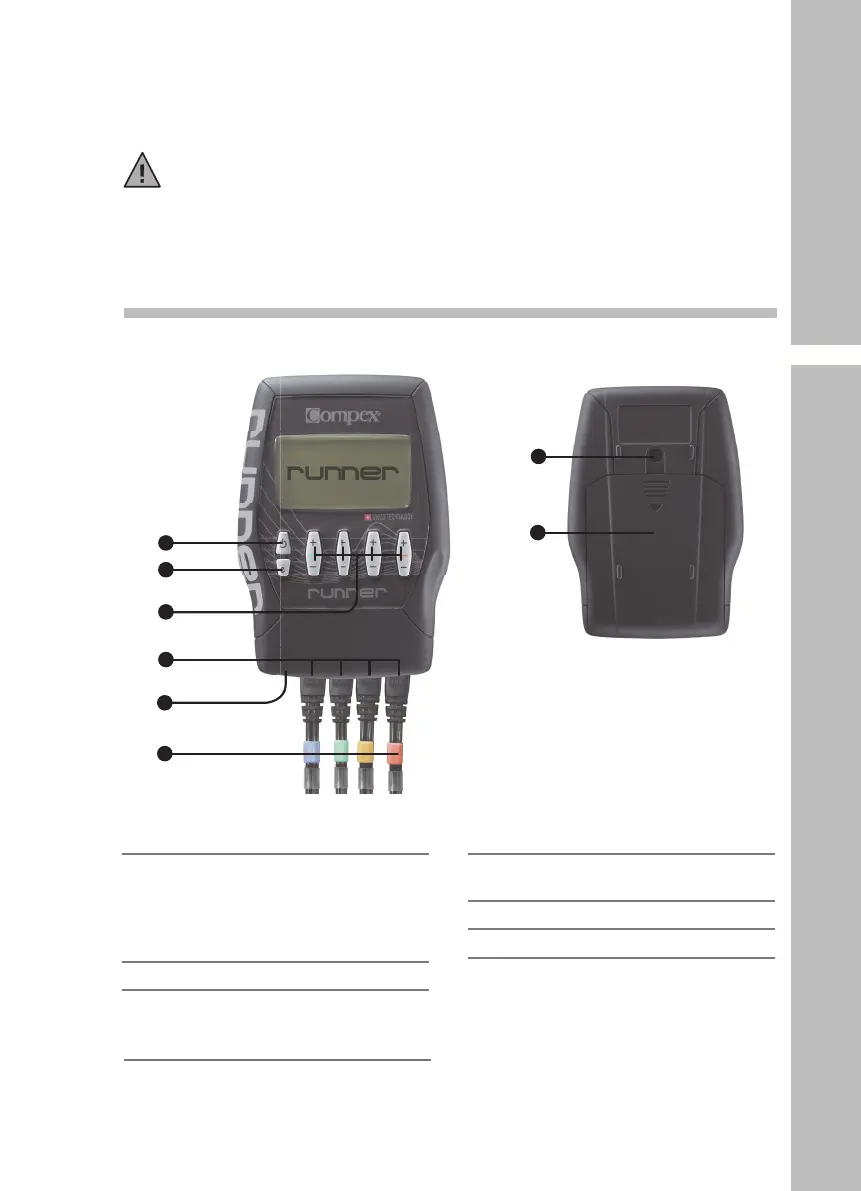

A On/O button
B “i” button used to:
Increase stimulation energies in several
channels simultaneously.
Access the LAST menu (the last programme
used).
C Sockets for the 4 stimulation cables
D Stimulation cables
Channel 1 = blue Channel 2 = green
Channel 3 = yellow Channel 4 = red
E +/- buttons for the 4 stimulation channels
F Socket for the charger (Slide the red cover
to the right to free the charger connector)
G Rechargeable battery compartment
H Belt clip socket
