● Connect the 12V power cable to an appropriately fused power supply. CUDDY draws 0.1A, so a low
amperage fuse is recommended.

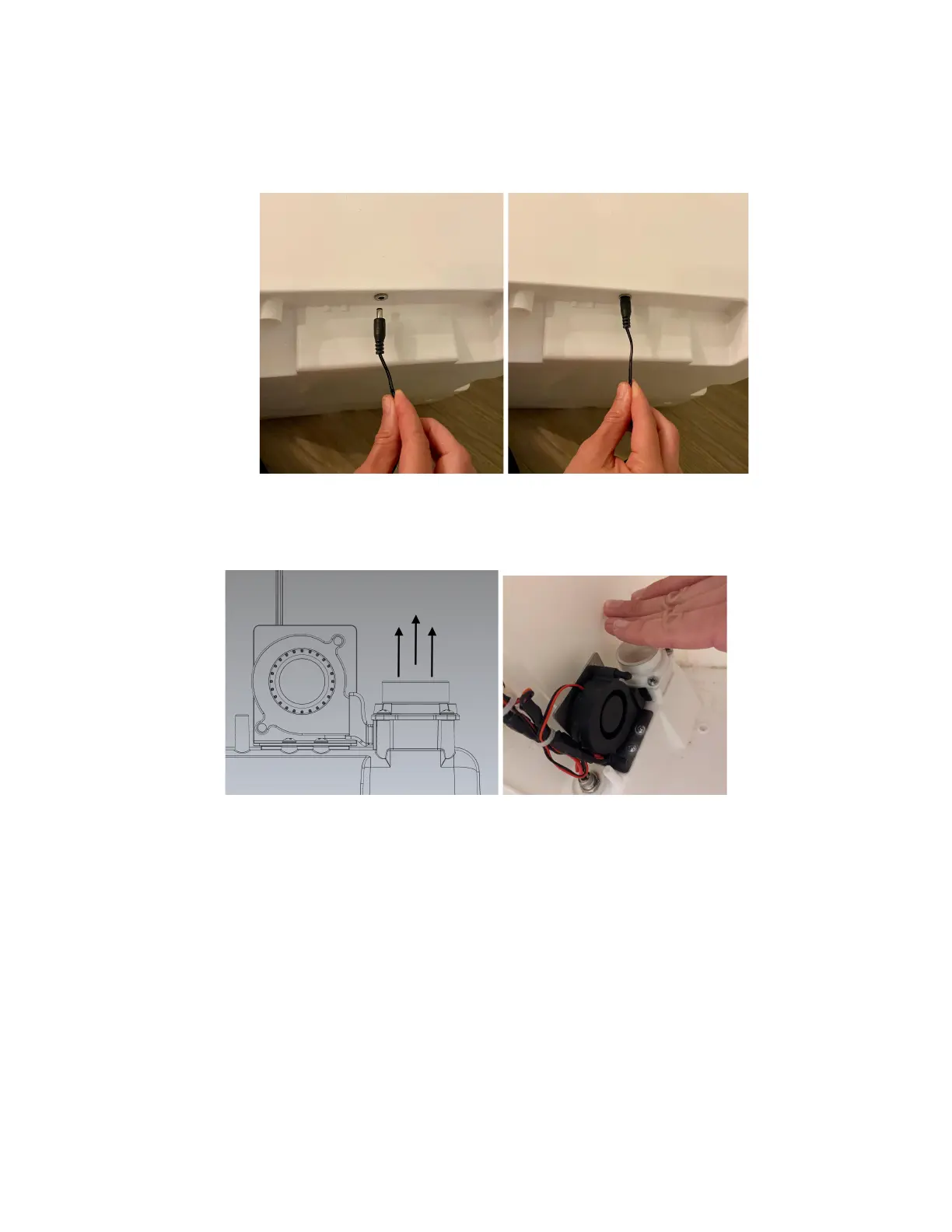

● Insert the male connector into the power connection at the rear of CUDDY as shown
● Confirm the fan is operational by feeling the flow of air at the back of the unit.
● Insert a battery into the battery box. Confirm the LED Liquid-full indicator light is working by
pinching the spring contacts near the urine drain and observing the LED comes on.
