Compool Cp3400
Installation
High Voltage Wiring

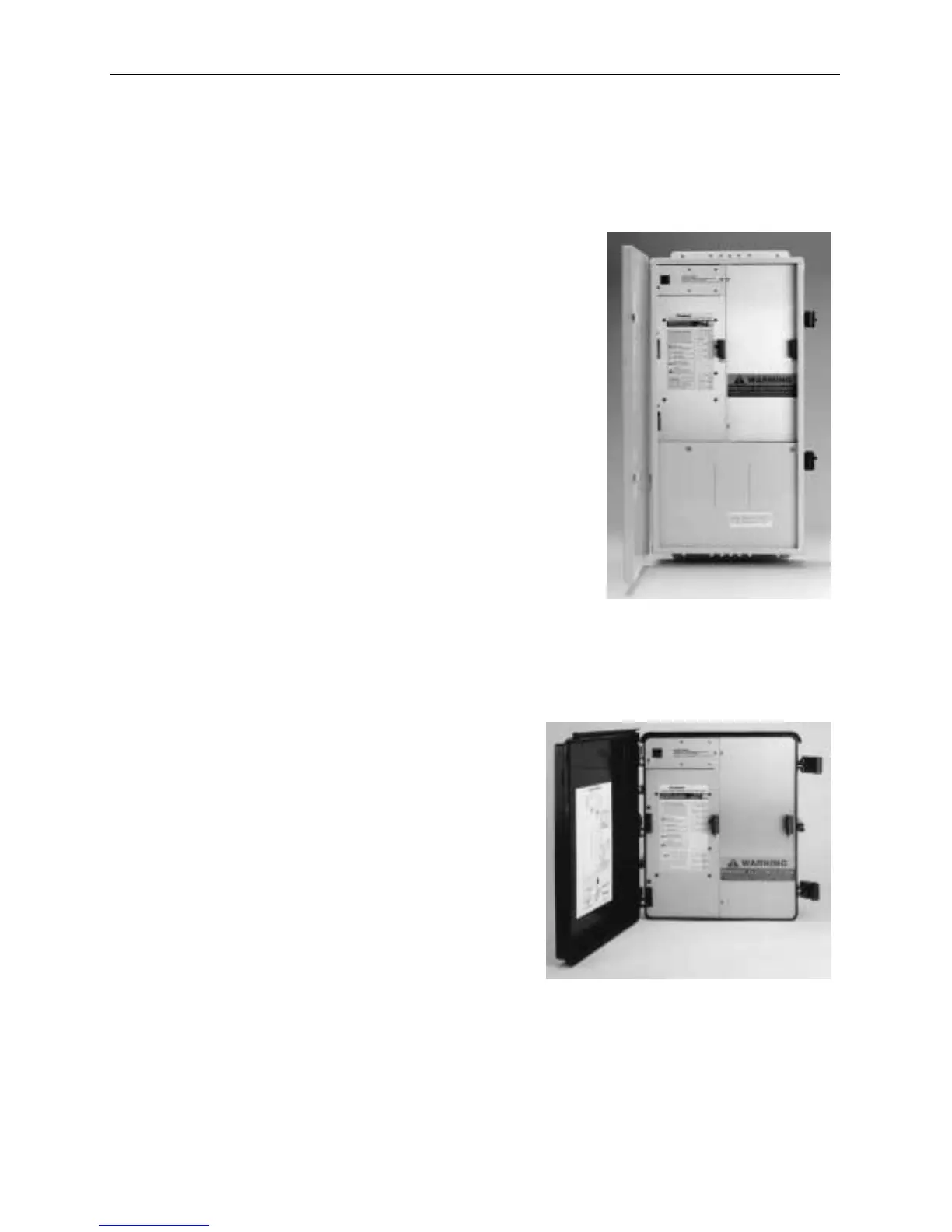

Power Center with built in Sub-panel
At the equipment pad, mount the Power Center within
15’ of all the equipment. Provide power from the
Main-panel (located at the house) to Power Center.
Power Center without built in Sub-panel
At the equipment pad, mount a 100 amp
electrical circuit breaker panel (Sub-panel)
within 15’ of all the equipment. Provide
power from Main-panel (located at the house)
to the Sub-panel. Mount the Power Center
next to the Sub-panel.
