Compool Cp3400

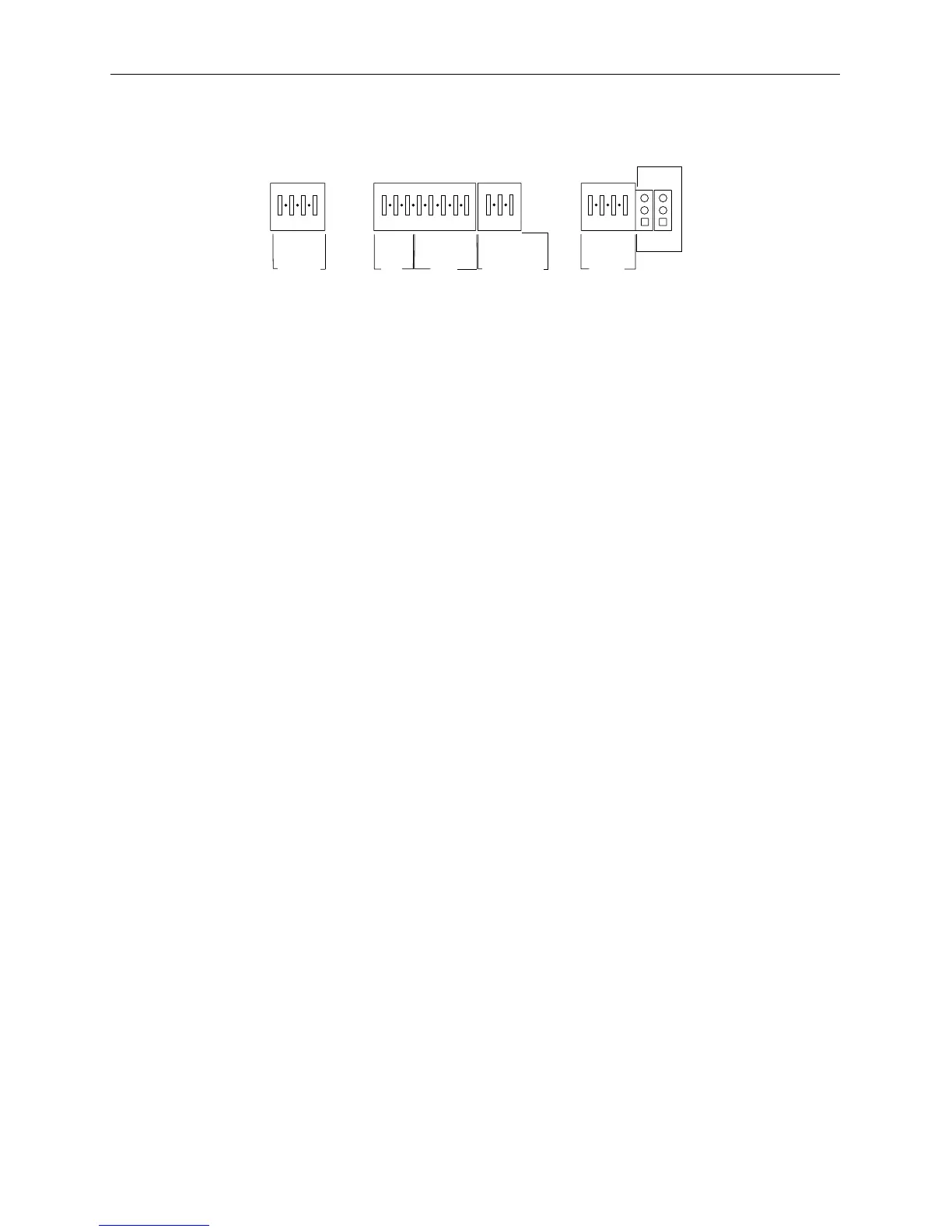

Configuration Switches
After setting configuration switches, turn system power off for a few seconds.
FREEZE
Freeze settings are used to configure the following equipment.
FLTR Activate filter pump during freezing conditions.
AUX1 Activate AUX1 during freezing conditions.
AUX2 Activate AUX2 during freezing conditions.
AUX3 Activate AUX3 during freezing conditions.
I/L - Interlock
Interlock settings are used to configure the following equipment.
SPA Activate filter pump (single pump system)
CLNR Activate cleaner interlocks. Cleaner must be installed on AUX1.
FDEL Activate filter delay (heater cool down).
SYST - System
System settings are used to configure the following equipment.
SOLR Activate solar system.
HTPMP Activate heatpump as secondary heat source.
MANHT Activate heater when spa is manually turned on.
WFAL Activate an overflow from spa to pool. Uses AUX2 circuit.
FLRCL Activate floor cleaner valve.
SPEC FUNCT - Special Functions
Special Functions settings are used to configure the following equipment.
DIM3 Activate dimmer for AUX3 circuit.
B/W Activate backwash circuit.
HI SPD - High Speed
High Speed settings are used to configure the following equipment.
SPA Activate high speed when spa is on.
HTR Activate high speed when heater is on.
1234
ON
12345
67
ON
8
123
ON
1234
ON
FLTR
AUX1
AUX2
AUX3
FREEZE I/L SYST SPEC FUNCT HI SPD
SPA
POOL
HEAT
SPA
CLNR
FDEL
SOLR
HTPMP
MANHT
WFAL
FLRCL
DIM3
B/W
SPA
HTR
AUX1
SOLR
