Compool Cp3810
Modular Crimping Tool

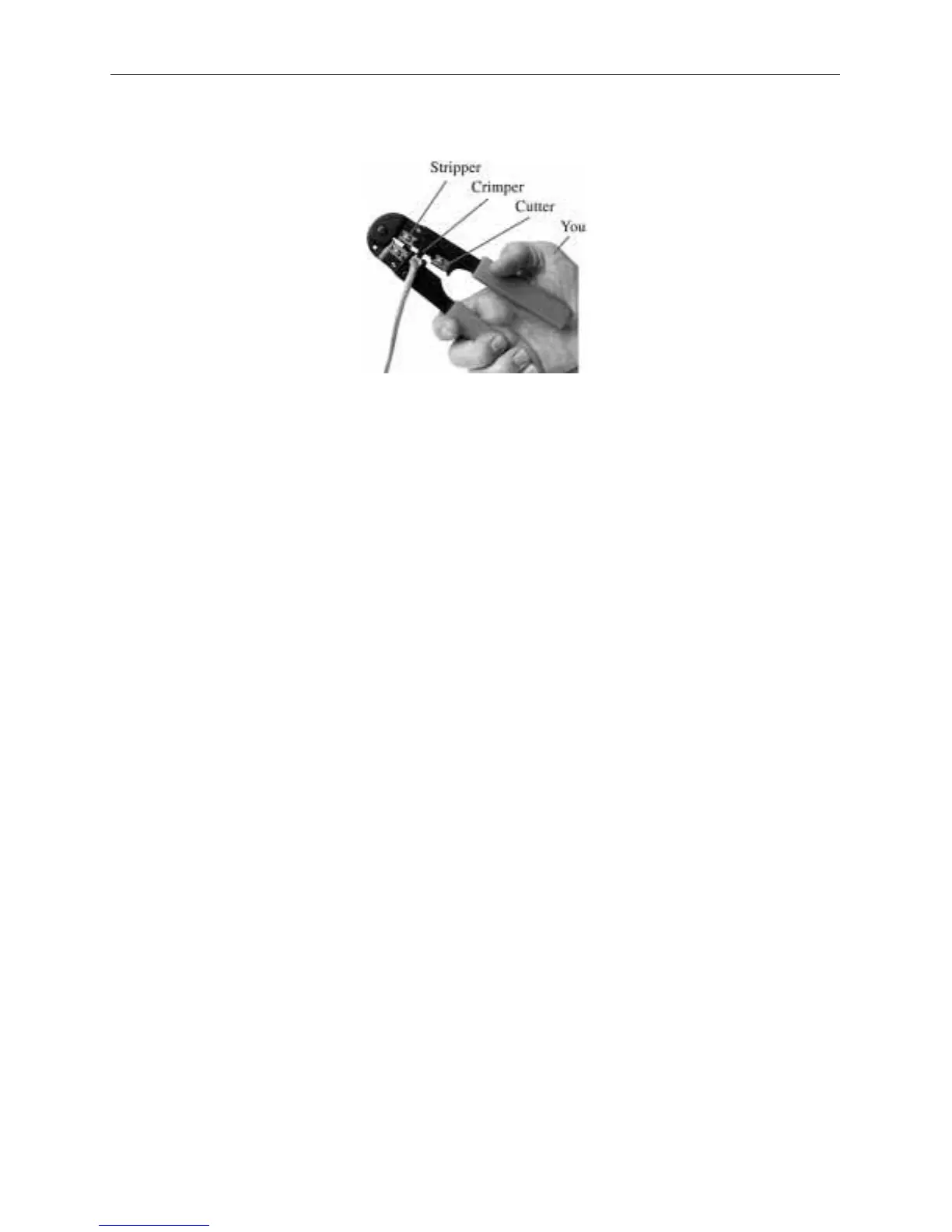

The Crimping Tool is required to attach modular connectors to the Hookup Cable. The tool may
be purchased from a pool supply store (model TOOL-6). If purchasing from an electrical supply
store, verify it is designed to crimp 6-position connectors.
• To install the modular connectors
1. Use stripper to remove cable jacket.
2. Insert modular connector into crimper slot.
3. Insert cable with blue wire closest to the tool handle.
4. Squeeze handle firmly to set secure connector.
Note
It is required that position of blue wire is the same at both ends of the cable.
