Compool Lx220
Second Valve Actuator

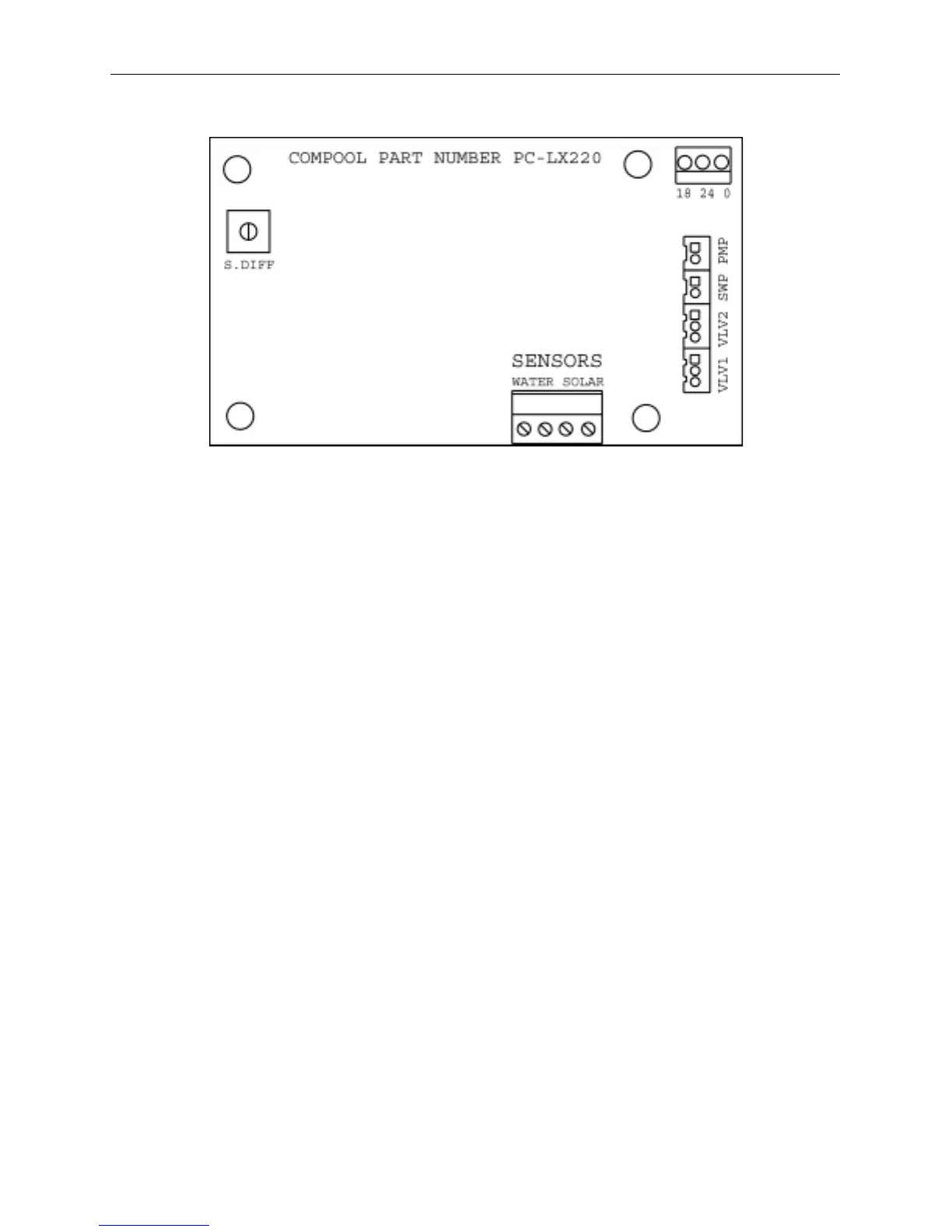

It is possible to control a maximum of two Valve Actuators. Plug the second Valve Actuator
into VLV2 socket.
System Start-up
Apply power to the system.
Place the WATER FLOW TO PANELS Switch in the “OFF” position. The POWER ON and
POOL CLEANER DELAY EXPIRED Lights should come on.
If pool cleaner protection has been added to the system, the pool cleaner pump motor should be
activated whenever the pool cleaner timer is on. Momentarily turn pool cleaner timer on and off
to check that the motor is operating correctly.
Check that Solar Valve is in “solar bypass” position, diverting water away from solar panels. If
Solar Valve is staged incorrectly (ie: diverting water to the solar panels), reverse switch on back
of Valve Actuator (change from ON1 to ON2, or vice-versa). The Valve Actuator will
automatically rotate to the correct position.
Place the WATER FLOW TO PANELS Switch in the “ON” position. The POOL CLEANER
DELAY EXPIRED Light will turn off, and the SOLAR ON Light will come on. Check that
Solar Valve has rotated from the “solar bypass” position to the “solar” position, diverting water
through the solar panels.
Place the WATER FLOW TO PANELS Switch in the “AUTO” position.
The system is now ready to be operated as desired.
