Compool Lx220
Installation Instructions

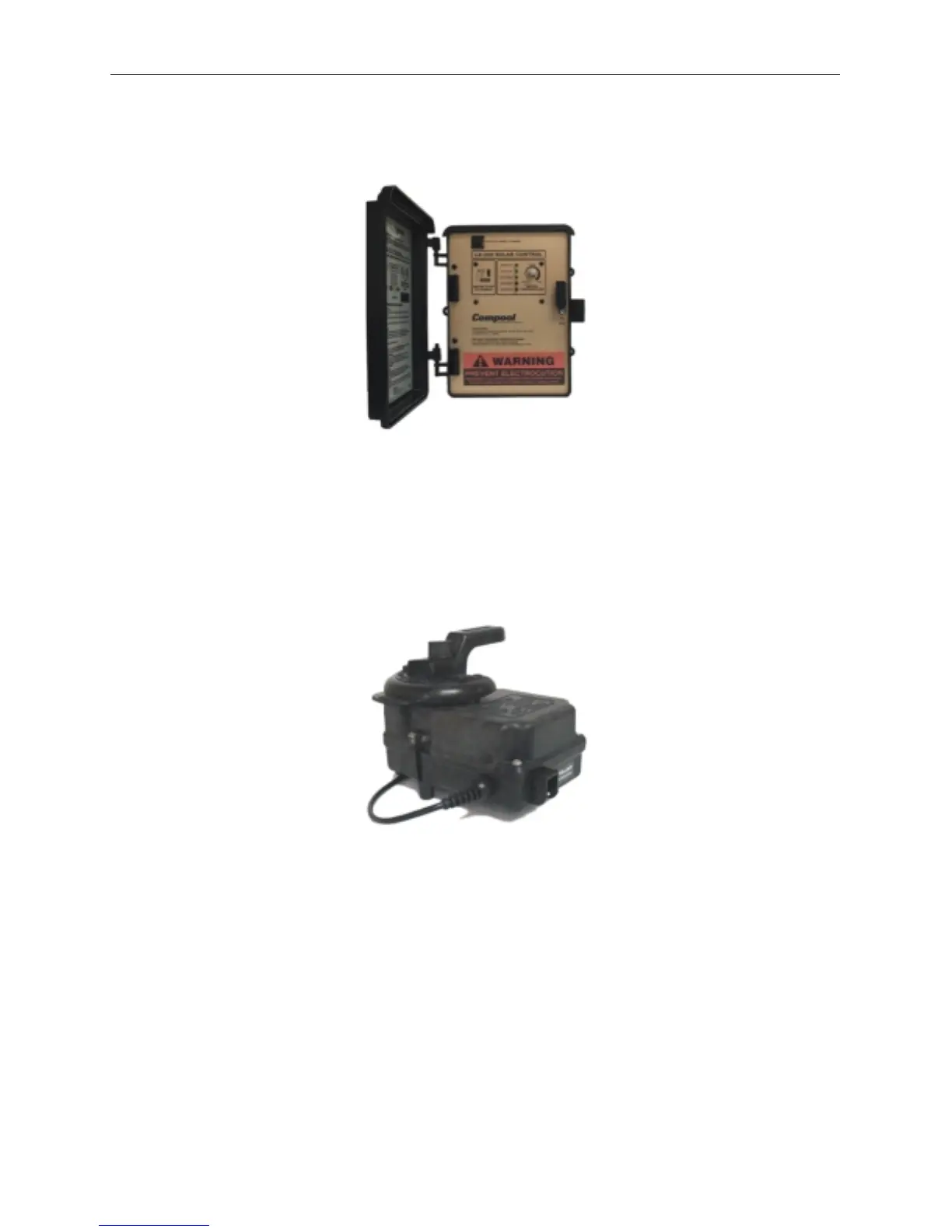

Solar Control
Select a convenient location to mount the Control, making sure that the location is greater than
5 feet from the Pool or Spa and no further than 15 feet from the Solar Valve. Wall-mount the
Control, using appropriate screws through the three external mounting points located on the side
of the enclosure.
Valve Actuator
Mount Valve Actuator to solar valve using the 4 mounting screws provided. Run cable to solar
control. Loosen LOCK SCREW on service panel of Solar Control, and swing open to expose
the high voltage and low voltage compartments. Insert Valve Actuator cable through hole on
bottom left side of Solar Control, and plug into circuit board at VLV1 socket.
