7
Compool Lx220
Pool Cleaner Protection
Recommended for use in pool systems which utilize a “booster pump” pool cleaner. This feature
automatically turns off the pool cleaner pump for a few minutes whenever solar is initiated. This
will protect the pump from damage caused by air in the solar panels at system start-up.

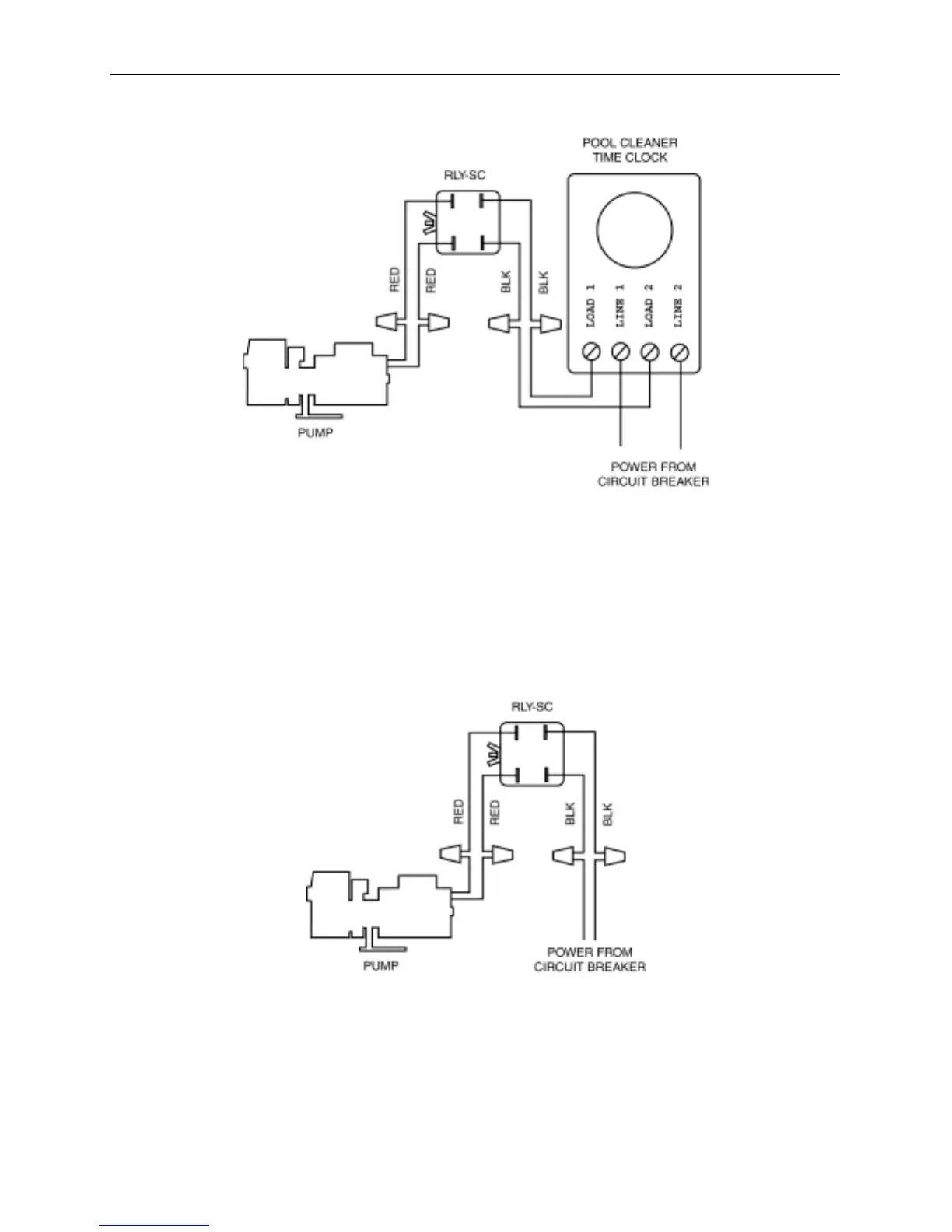

Install Relay Kit (model RLY-SC) at the Solar Control in accordance with instructions
provided, and plug low-voltage connector onto circuit board at SWP Socket. Using wire nuts,
connect Black wires to Load connections of Pool Cleaner Time Clock, and connect Red wires
to the Pool Cleaner Pump.
Solar Booster Pump Control
If a solar booster pump is being used, install a Relay kit (model RLY-SC) at the Solar Control
in accordance with instructions provided.
Plug low-voltage connector onto circuit board at PMP Socket. Using wire nuts, connect Black
wires to 115VAC or 230VAC Line Voltage, and connect Red wires to the Solar Booster Pump.
