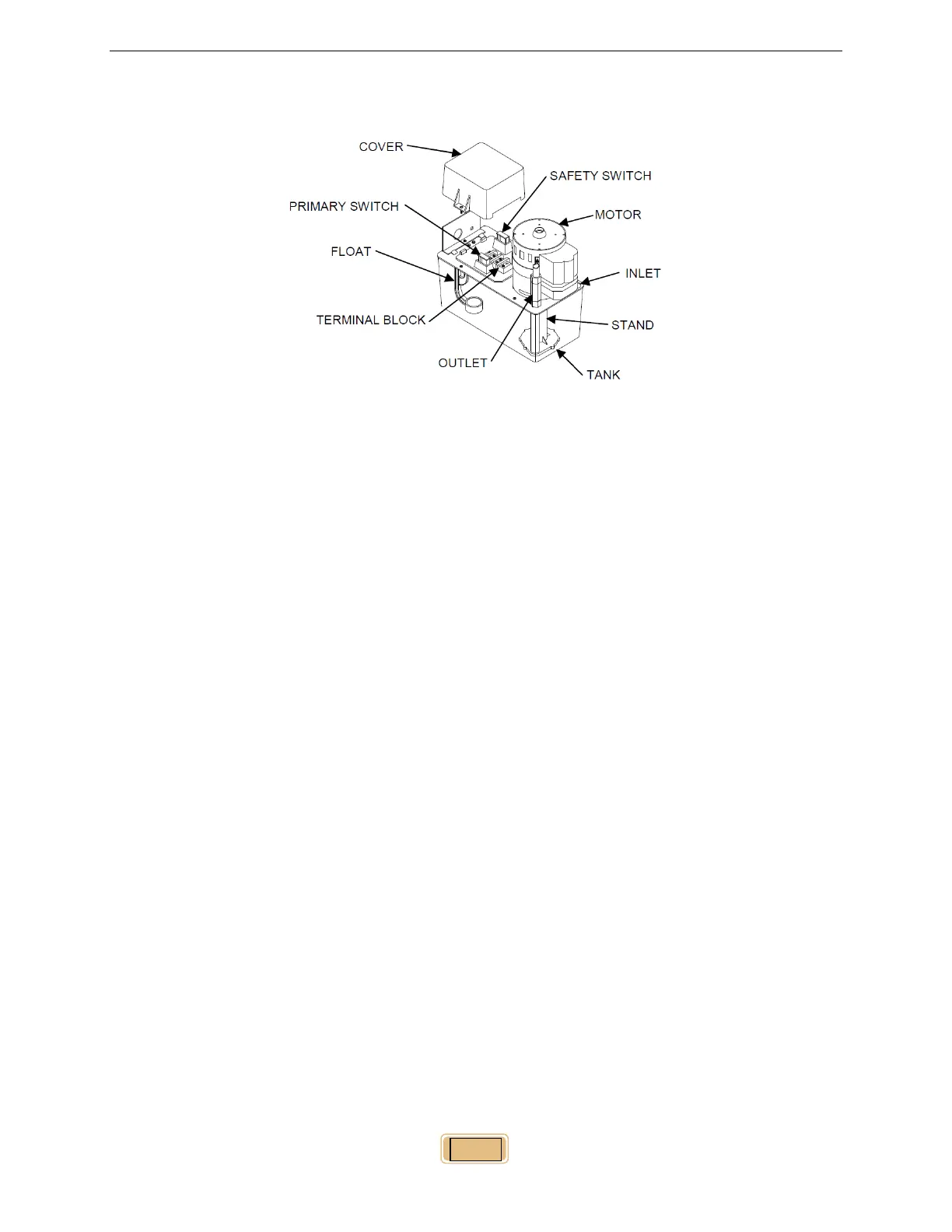

Figure 7 Condensate Pump Schematic
Refer to the provided owner’s manual for a complete installation guide of the condensate pump.
COMPRESSOR: Standard units are provided with scroll compressors. Each compressor is provided
with a safety high pressure switch. It is manual resettable and is factory set to open at 400 psig. A
low pressure switch is also provided which is automatic reset.
ALL REFRIGERATION PIPING SHALL BE INSTALLED PER ASHRAE STANDARDS.
DRY FLUID COOLERS: These are mostly dropped shipped on the job site prior to the air conditioner.
These units are shipped from the factory with the following:
A. Control Box
B. Surge Tank (if ordered it is pre-piped)
C. Pump Mounting Kit consisting of a special mounting leg and a weather shield (optional)
It is recommended to check the manufacturer’s literature for more detail of the dry fluid cooler prior the
unit installation.
PUMPS FOR CKG MODELS: These are shipped from Compu-Aire along with the air conditioners unit.
Pump supplied are internally protected, but in many localities local codes require that a separate fused
disconnect be provided. These pumps are to be field mounted. Every care should be taken to ascertain
that no undue noise of vibration be carried to the structure. Provide vibration eliminator and shut off
valves.
DUAL PUMP PACKAGE WITH AUTOMATIC CHANGE OVER AND MANUAL CHANGE OVER (optional) FOR
CKG MODELS: Control panel are factory supplied for field installation. Flow switch and check valve are
to be supplied and installed by the contractor per drawing shown inside.
*IMPORTANT SUGGESTION*
In order to have trouble free operation free operation, please maintain the humidifier and change filters
when dirty.
For assistance, please call COMPU-AIRE, INC. at (562)945-8971
