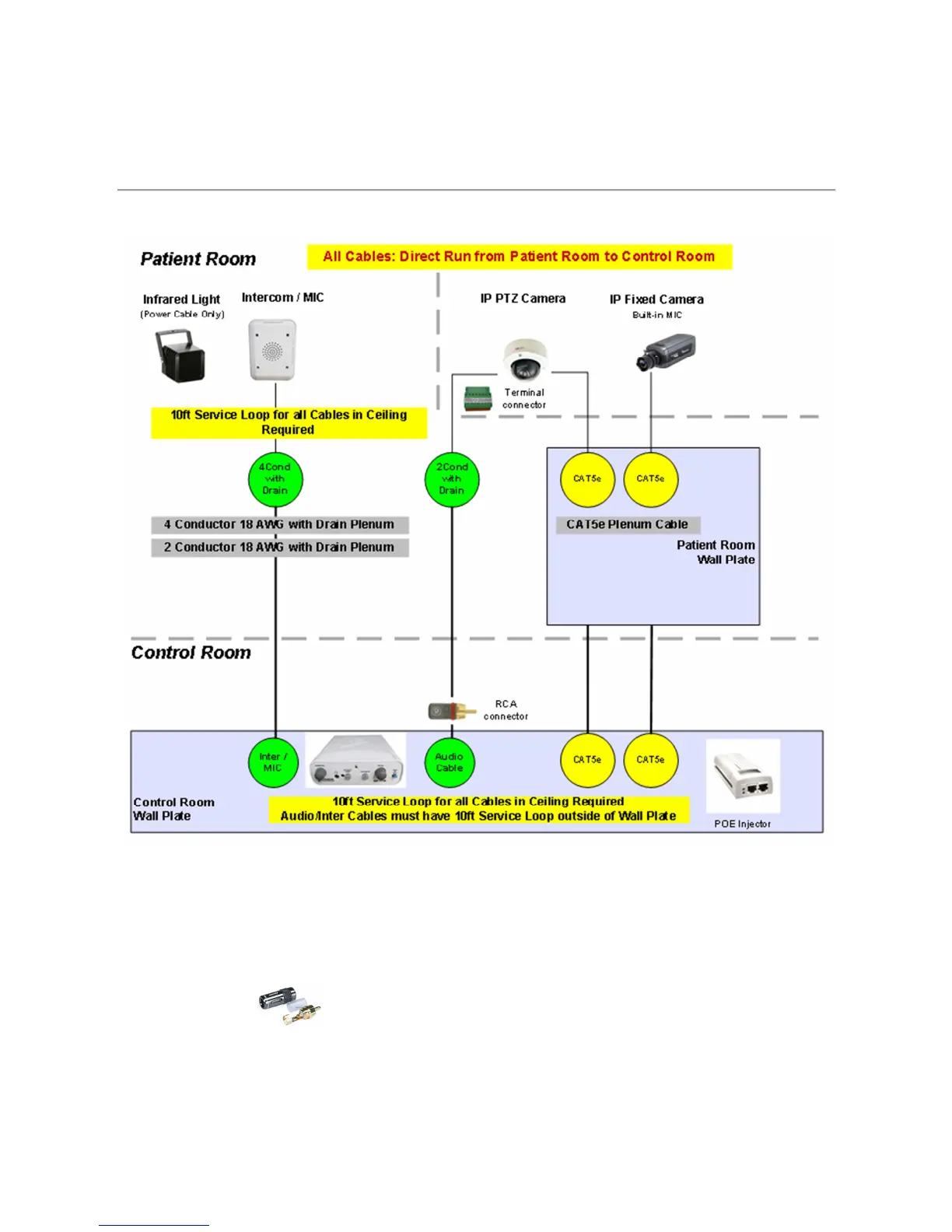

Audio, Video, Infrared Wiring:
Camera (Fixed and PTZ), Infrared Light, Intercom/MIC
Cable Drops Description:
IP Video/PTZ: CAT5e PLENUM RATED
IP CPAP Equipment: CAT5e PLENUM RATED
Intercom: 4 Cond with Drain wire, Shielded, non-twisted, PLENUM Rated
Audio: 2 Cond with Drain wire, Shielded, non-twisted, PLENUM Rated
• RCA Connector Soldered with 10 ft. Service Loop
**All Cables must meet your State Building, Electrical, and Fire Code. Contact your
local Building Inspector and Electrician for Further Information**
