Compumedics Grael and AV System: Power and Dimension

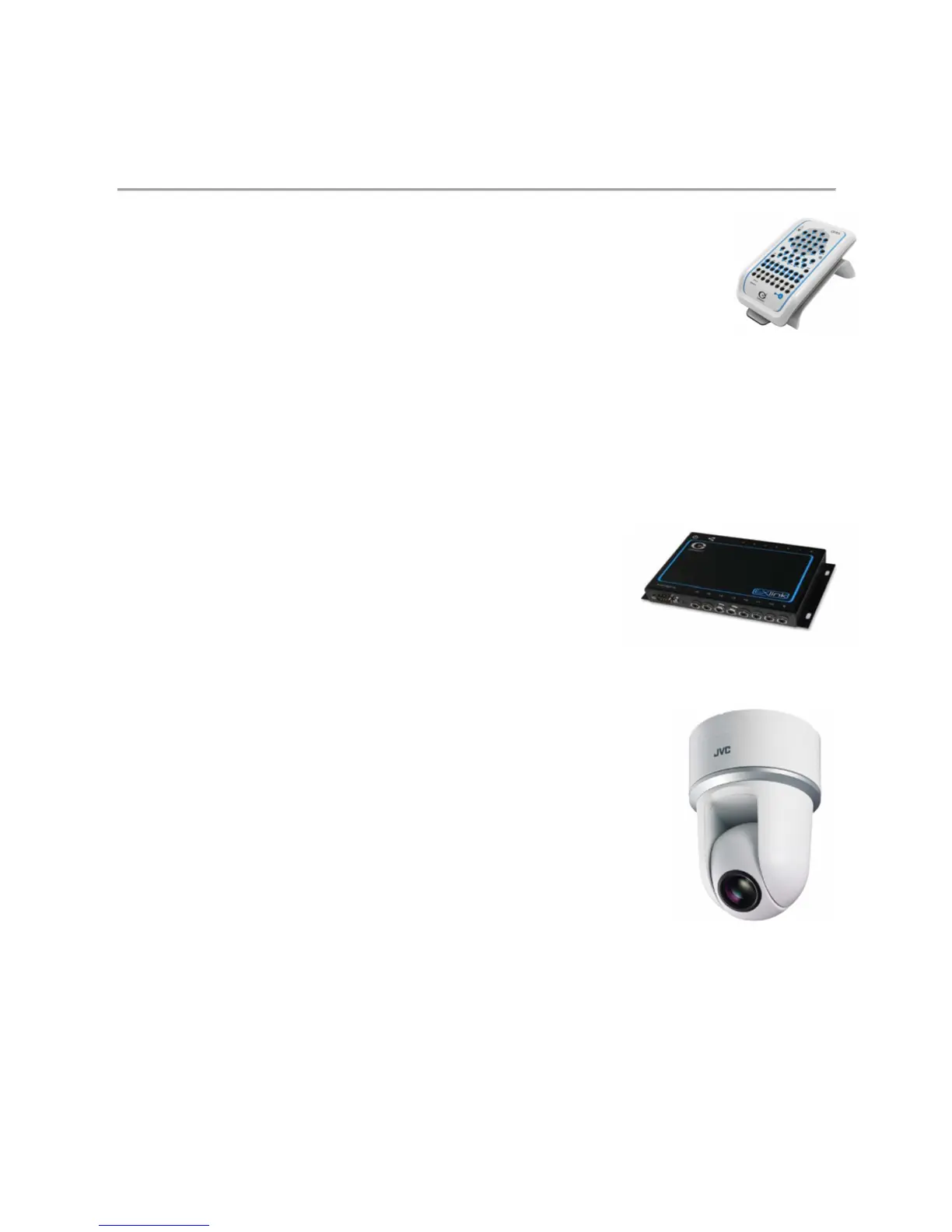

Grael Components:
Grael Patient Interface Box (PIB): 9.4 in x 5.6 in x 2.0 in 29.2 oz
Data Logger: 7.3 in x 3.0 in x 1.5 in 8.5 oz
POE Injector: 5.5 in x 3.0 in x 1.5 in 6.0 oz
Network: 100 Mbps Ethernet, RJ-45
Protocols: I IPv4, TC/IP, PPPoE
Grael Power:
Compumedics Grael requires POE (Power over Ethernet) Injector or POE Switch. The Grael is
fully compliant with 802.3af and can be powered by either a mid-span power injector or POE
switch. The required voltage is 48v (as specified in 802.3af) while the maximum power
consumption is < 10 Watts (The Grael typically draws 6 to 7 Watts).
XLINK DC Input Component:
XLINK16 DC Input Analog inputs
Input connectors: 1/8in or 3.5mm Mono Jack
Inputs: ±1 Volts or ± 10Volts
Power Requirements: POE injector, 802.3af
Dimensions: 5.4 D x 4.1 W x 1.5 H in.
13.81D x 10.48W x 3.81H cm.
HD IP JVC-VN-H557U PTZ Camera Components:
Lens: ADL 10X lens, 10x digital zoom
Angle of View: (Camera+LENS) WIDE H:41.5°
Illumination B/W: 0.7 lx (F1.8, 50IRE, 1/30)
Illumination Color: 0.9 lx (F1.8, 50IRE, 1/30)
Video Compression: H.264: Up to 30/25 fps at 720x480 (NTSC)
MPEG-4: Up to 30/25 fps at 720x480 (NTSC)
MJPEG: Up to 30/25 fps at 720x480 (NTSC)
Audio: Built-in Microphone
External Microphone input
Audio Output
Network: RJ-45（100BASE-TX/10BASE-T）、AUTO
NEGOTIATION/MANUAL (100Base/10Base.FULL/HALF）
Protocols: IPv4, HTTP, TCP, RTSP/RTCP/RTP, ICMP, UDP, IGMP, DNS,
DHCP, ARP, FTP Client, SMTP, NTP, RTSP/RTCP/RTP
Weight: 664g
Power: 12V DC or 24 AC, 45W
Maximum 1920x1080 Resolution at 30fps (FullHD+720P or Full HD+CIF+CIF)
