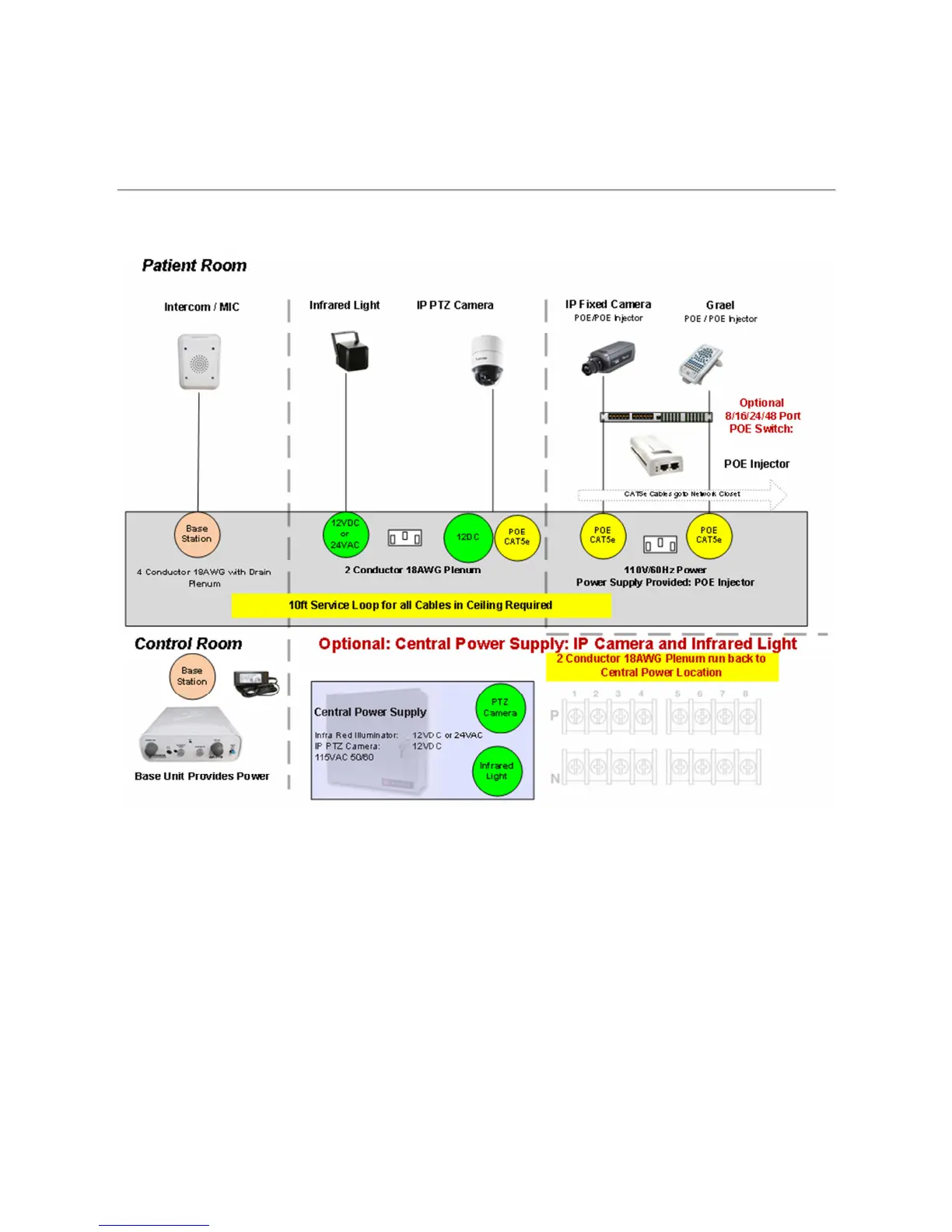

Power Wiring
Grael, Camera (Fixed or PTZ), Infrared Light, Intercom/MIC
Power Cables Drops:
Grael Data: POE Injector Power Supply will be provided
Camera: CAT5e using Class 3 POE or 2 Conductor 18AWG non-twisted PLENUM
Infrared Light: 2 Conductor 18AWG non-twisted PLENUM
MIC-Intercom: 4 Conductor 18AWG with Drain wire PLENUM and Shielded non-twisted
Central Power Supply: Customer Supplied: Compumedics will provide Specs
**All Cables must meet your State Building, Electrical, and Fire Code. Contact your local
Building Inspector and Electrician for Further Information**
