Cable Requirements Grael Sleep System:
Compumedics Amplifiers and AUX:
Grael: Compumedics PSG System
One (1) CAT 5e Plenum Cable for each bed, Terminated TIA/EIA568B
Must have a Static IP Address
Power over Ethernet (POE)
XLINK or Data Logger: 8 Analog Signals
One (1) CAT 5e Plenum Cable for each Device, Terminated TIA/EIA568B
Must have a Static IP Address
3 rd Party CPAP Equipment:
CPAP Remote Cable: (Respironics, ResMed, etc…)
One (1) CAT 5e Plenum Cable for each bed, Terminated TIA/EIA568B
CPAP controller may requires desktop space if not controlled by software
May need a Static IP Address
- Customer Responsible for Setting up a time for the CPAP Manufacturer
Representative to install and Train on their System
Digital Video Camera Cabling:
IP Camera with Pan, Tilt, and Zoom (PTZ):
One (1) CAT5e Plenum Cable in the Ceiling

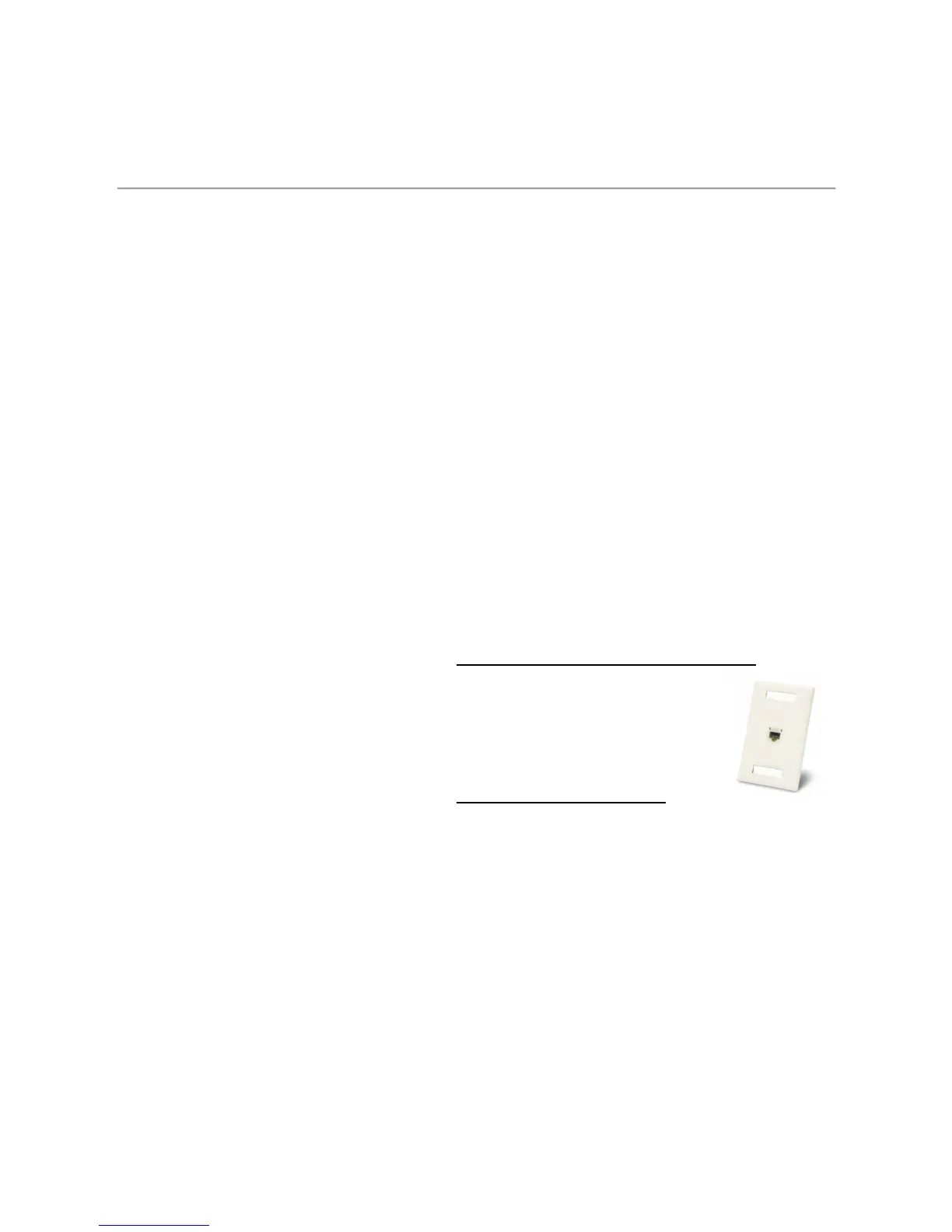

Terminated TIA/EIA568B in an External Single Gang Box (Required)
Must have a Static IP Address
10ft. Service Loop
Mark the location of the Cabling in Ceiling
IP Camera Fixed:
One (1) CAT5e Plenum Cable in the Ceiling
Terminated TIA/EIA568B in an External Single Gang Box
Must have a Static IP Address
10ft. Service Loop
Mark the location of the Cabling in Ceiling
Intercom Cable:
4 Conductor Shielded with Drain wire, 18AWG cable, Non-twisted Pair and Stranded
coming out into a single gang box.
- Cables above Ceiling
- 10ft. Service Loop in the Patient Room and Control Room
- Mark the location of the Cabling in Ceiling
