Compuprint SP40 - Passbooks with Horizontal Fold; Passbooks with Vertical Fold

50
P
P
a
a
s
s
s
s
b
b
o
o
o
o
k
k
s
s
w
w
i
i
t
t
h
h
H
H
o
o
r
r
i
i
z
z
o
o
n
n
t
t
a
a
l
l
F
F
o
o
l
l
d
d

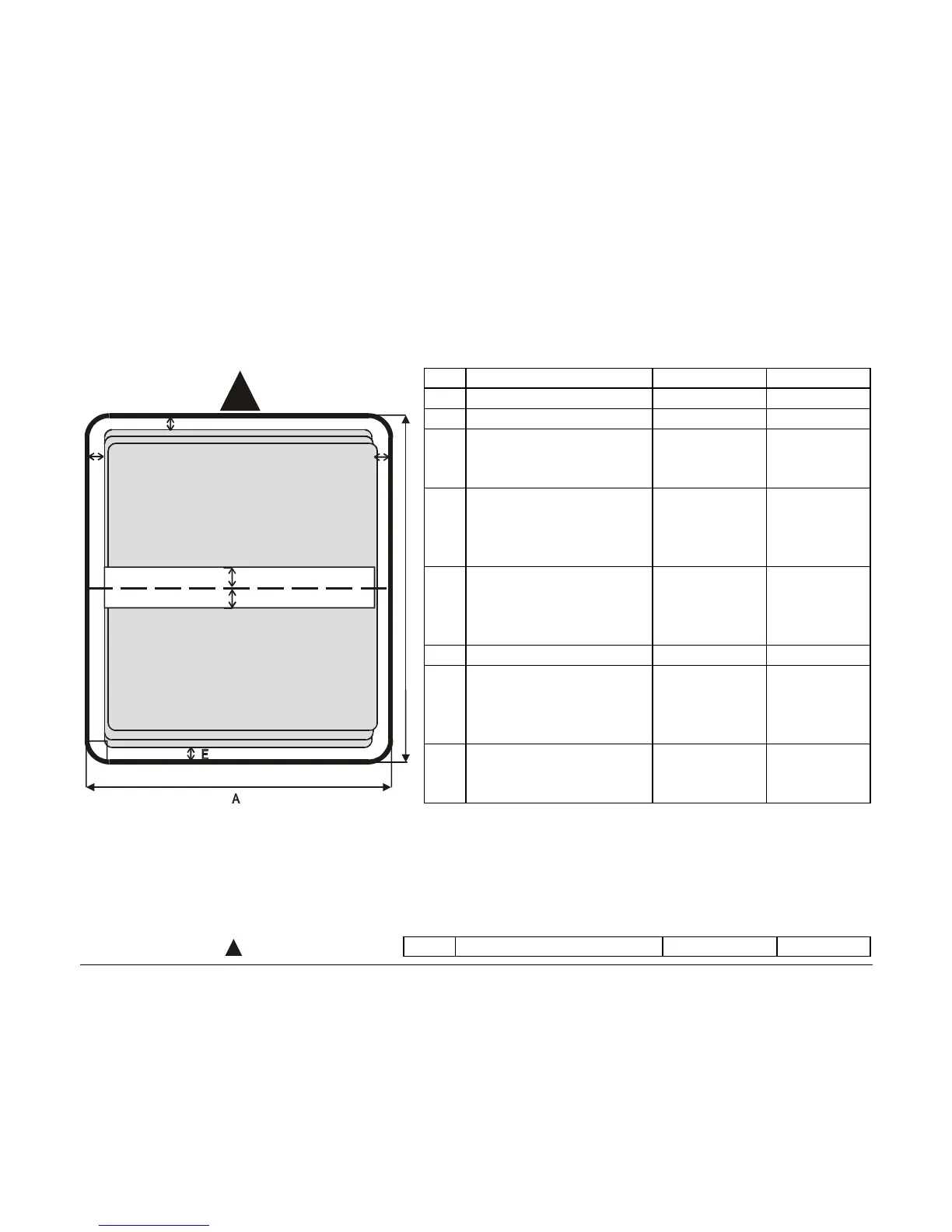

Dimension Maximum Minimum
A Passbook width 241 mm 110 mm
B Passbook length 220 mm 130 mm
C Distance between print
character position and
left or right edge
- 3.0 mm
D Distance between top
edge of the document
and top edge of first
printed line
- 1 mm
E Distance between
bottom of last printed
line and bottom edge of
the document
- 6.6 mm
F Outer corner radius 9.35 mm -
G Distance from fold to
bottom of the first
printed line above the
fold.
- 5.1 mm
J Distance from fold to
top of the first printed
line below the fold.
- 5.1 mm
Insertion direction
B
Print Area
Print Area
C
C
D
F
G
H
ABCD
ABCD
P
P
a
a
s
s
s
s
b
b
o
o
o
o
k
k
s
s
w
w
i
i
t
t
h
h
V
V
e
e
r
r
t
t
i
i
c
c
a
a
l
l
F
F
o
o
l
l
d
d
Dimension Maximum Minimum
