WARNING! The occurrence of cutting,
pressure and crushing points during these
procedures are inevitable.

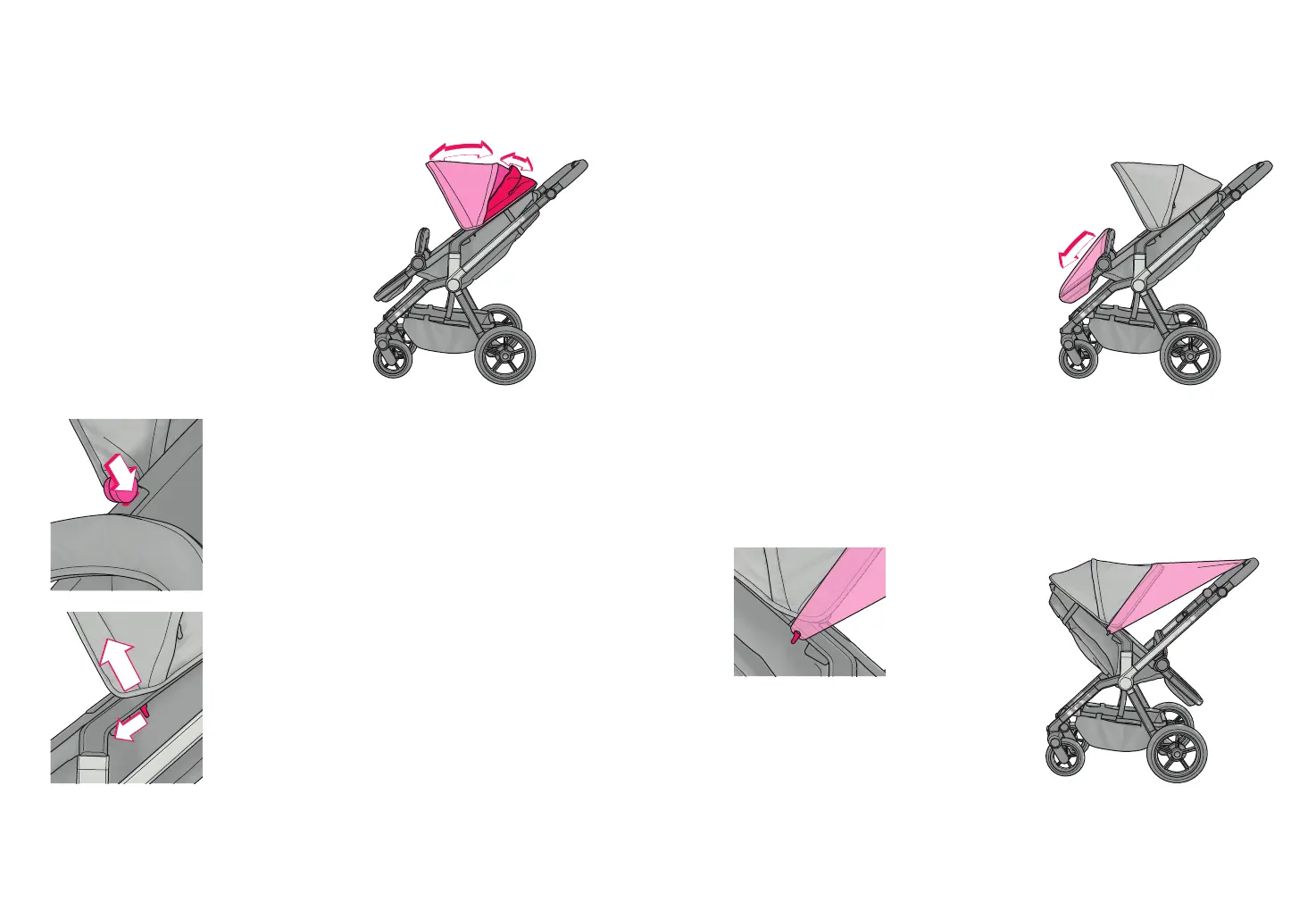

_ USING THE SUN VISOR
To attach the CONCORD WANDERER’s sun visor
(01) to the seat unit (04), carefully insert the sun
visor’s adapters into the matching sockets on the
seat unit and push until they lock into place.
Now use the Velcro fastener to attach the sun visor
to the seat cover.
To remove the sun visor (01), first undo the Velcro
fastener between the sun visor and the seat cover.
Press the release levers on the sun visor adapters
and pull the sun visor upwards to remove it.
The CONCORD WANDERER’s sun visor (01) can
be locked into place in 4 positions.
The rear portion of the sun visor can be
opened using the zip fastener to ensure
better ventilation.
WARNING!
Do not place loads/objects on the sun
visor (01).
_ USING THE WIND SHIELD
The CONCORD WANDERER is equipped
with an integrated wind shield (06).
To use the wind shield, open the zip
fastener on the safety bar (05) and stretch
the wind shield over the footrest (09).
If the wind shield becomes exposed to
misture, please ensure that you dry it out
thoroughly before stowing the wind shield
away in the safety bar cover!
_ USING THE SUN SAIL
The CONCORD WANDERER is equipped with a sun sail.
The sun sail can be stretched over the
front edge of the sun visor (01) and
secured to the release levers on the sun
visor adapters.
