Nortec SAM-e Installation | 10
3

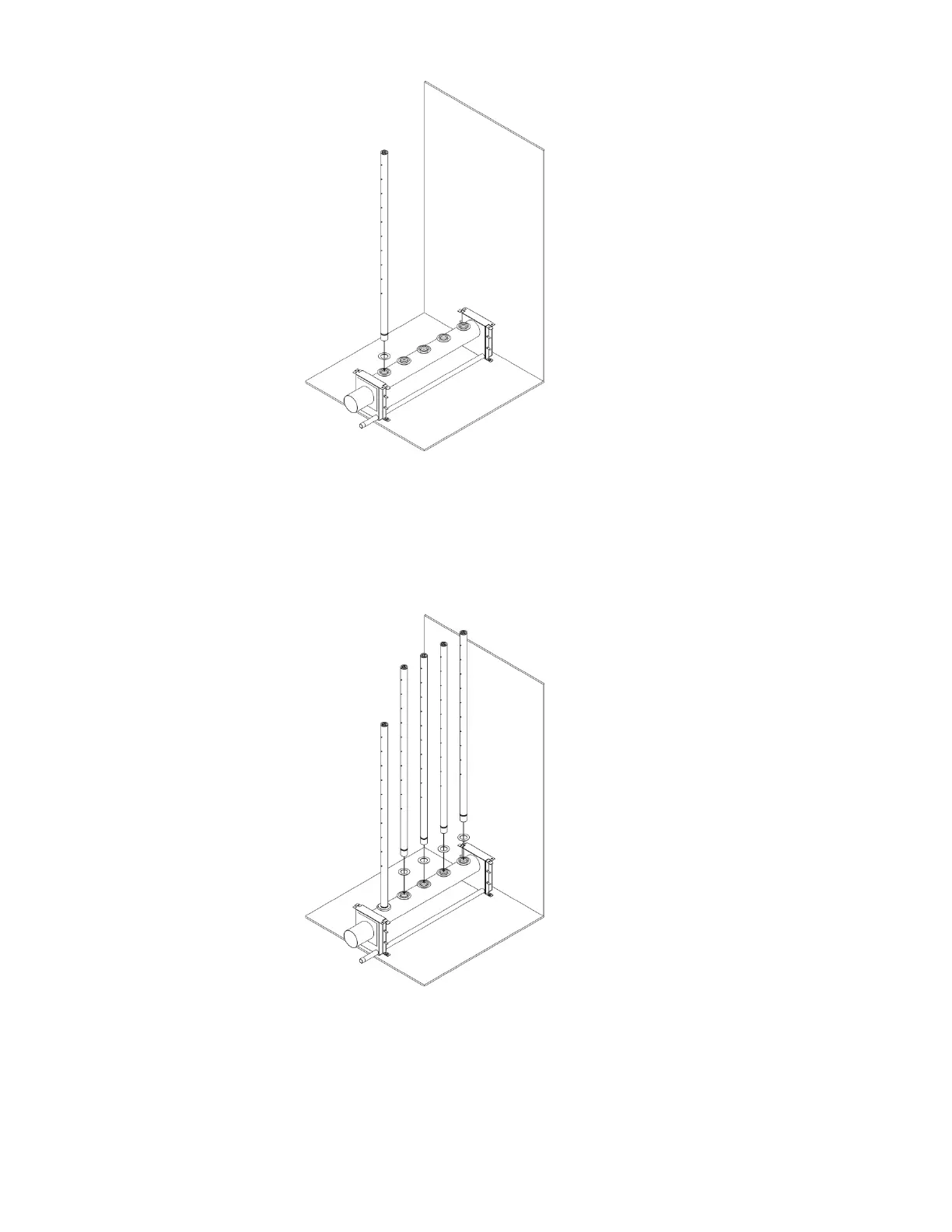

Insert tube into insertion stop washer and then into grommet.
Wetting grommet with water will make assembly easier.
Ensure nozzles face the sides of the duct (perpendicular to air flow).
4
Assemble remaining tubes in same way.
