Condair Nortec SAM-e - Nortec SAM-E with Pressure Steam

Nortec SAM-e Installation | 22
Nortec SAM-e with Pressure Steam

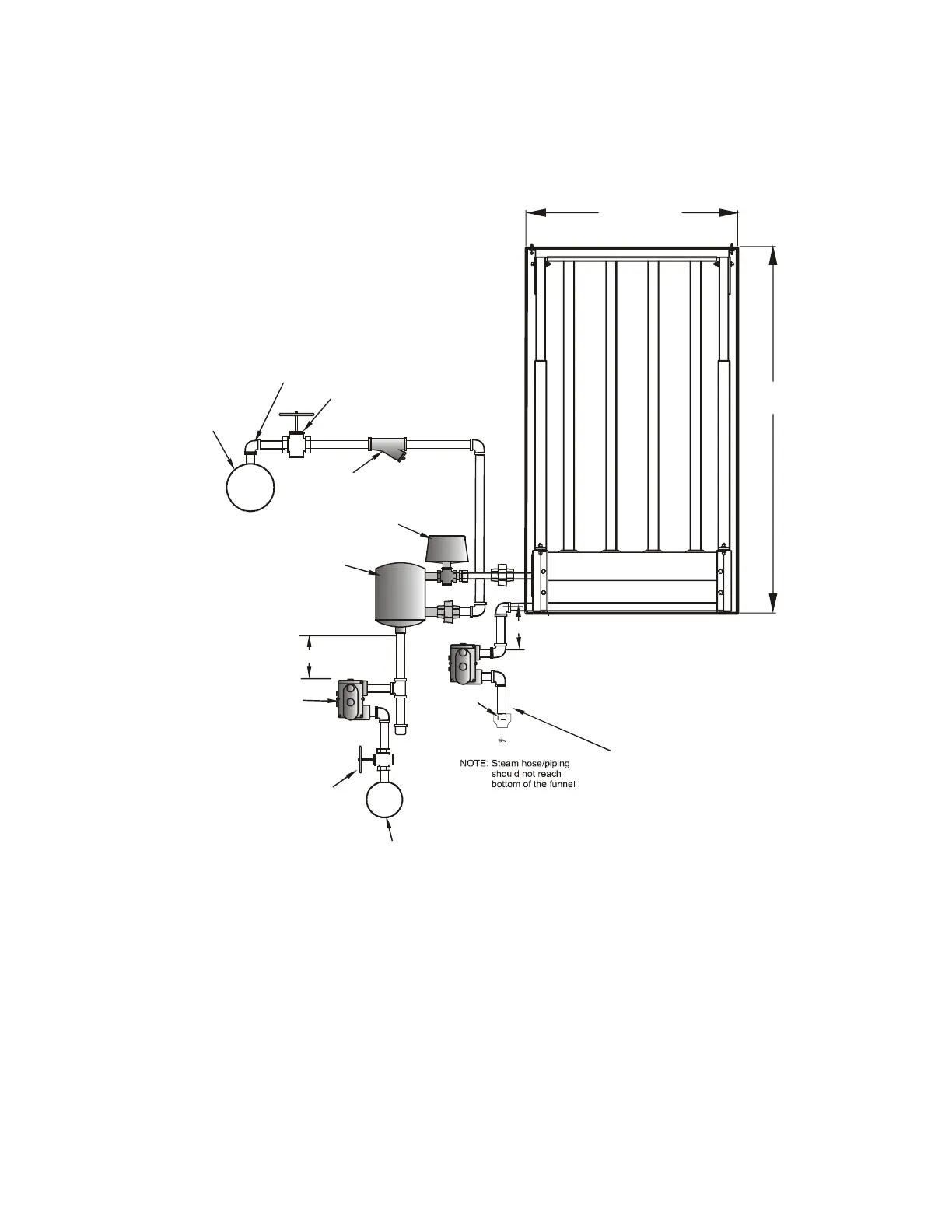

Pressurized Plumbing with External Separator
• Steam components in grey provided by Condair.
• Tap steam from top of pressurize steam main to avoid excess condensate.
• Condensate from separator to be returned to pressurized condensate main.
• Condensate from Nortec SAM-e to be returned to atmospheric floor drain.
When pressurized steam enters Nortec SAM-e, pressure drops down to almost atmospheric
pressure. Therefore, it must be drained atmospherically, and the use of a condensate pump (rated
for 212ºF) must be used to raise condensate to a higher elevation.
Strainer
Manual Shut-Off
Valve (By Others)
Pressurized
Steam Main
F & T Steam Trap
Duct/AHU Width
Duct/AHU
Height
Separator
Actuator & Valve
Pressurized condensate
return main
1” Air Gap
Drain
Manual Shut-Off
Valve (By Others)
6” min.
6” Min
Return to non-pressurized
condensate return main
Tap steam from top of
pressurized steam main
