Condair Nortec SAM-e - Nortec Mini SAM-E with Pressurized Steam

Nortec SAM-e Installation | 26
Nortec Mini SAM-e with Pressurized Steam

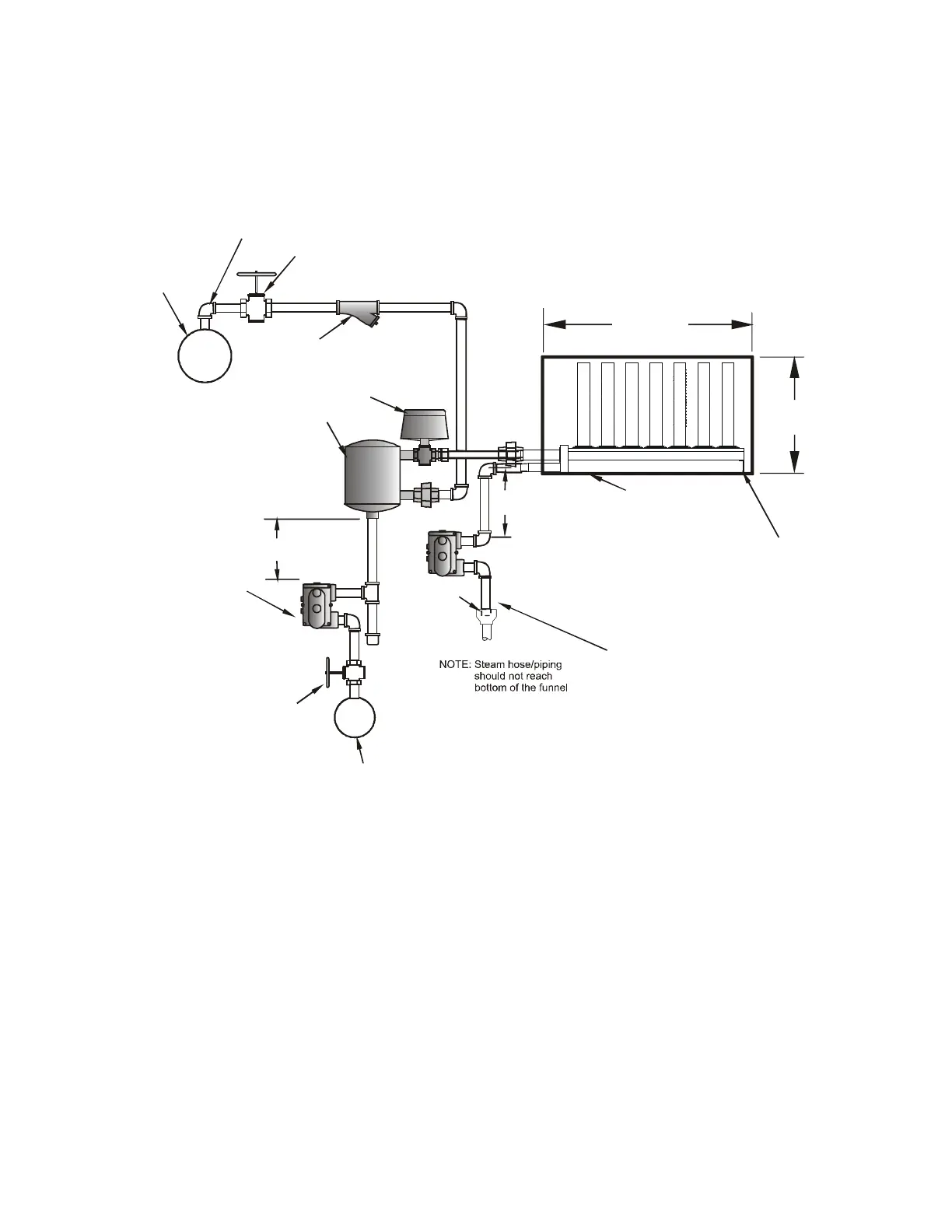

Nortec Mini SAM-e Pressurized with External Separator
• Steam components in grey provided by Condair.
• Tap steam from top of pressurize steam main to avoid excess condensate.
• Condensate from separator to be returned to pressurized condensate main.
• Condensate from Nortec SAM-e to be returned to atmospheric floor drain.
When pressurized steam enters Nortec SAM-e, pressure drops down to almost atmospheric
pressure. Therefore, it must be drained atmospherically, and the use of a condensate pump (rated
for 212ºF) must be used to raise condensate to a higher elevation.
Strainer
Manual Shut-Off
Valve (By Others)
Steam Main
F & T Steam Trap
Separator
Actuator & Valve
Pressurized condensate
return main
1” Air Gap
Drain
Steam from top of main
Manual Shut-Off
Valve (By Others)
6” min.
6” min
Return to non-pressurized
condensate return main
Duct Width
Duct
Height
Duct Floor
Mounting
bracket
