25 | Nortec SAM-e Installation
Condensate Pump Plumbing
When pressurized steam enters Nortec SAM-e, pressure drops down to almost atmospheric
pressure. Therefore, it must be drained atmospherically, and the use of a condensate pump (rated
for 212ºF) must be used to raise condensate to a higher elevation, or return to a pressurized
condensate main.

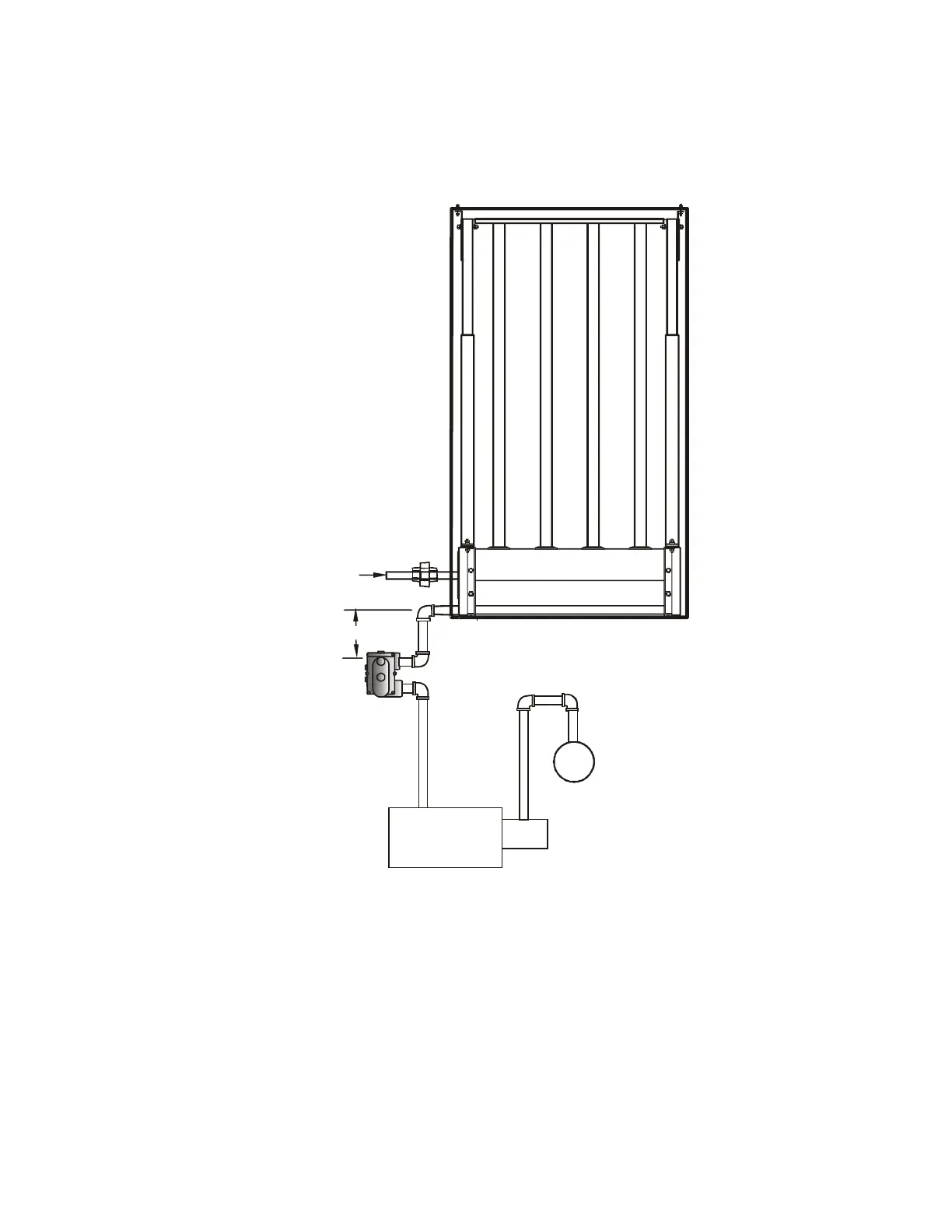

6” min.
Condensate Pump
(By Others)
Pressurized Steam from Valve
Pressurized Condensate Main
To Next Page
