Nortec SAM-e Installation | 14

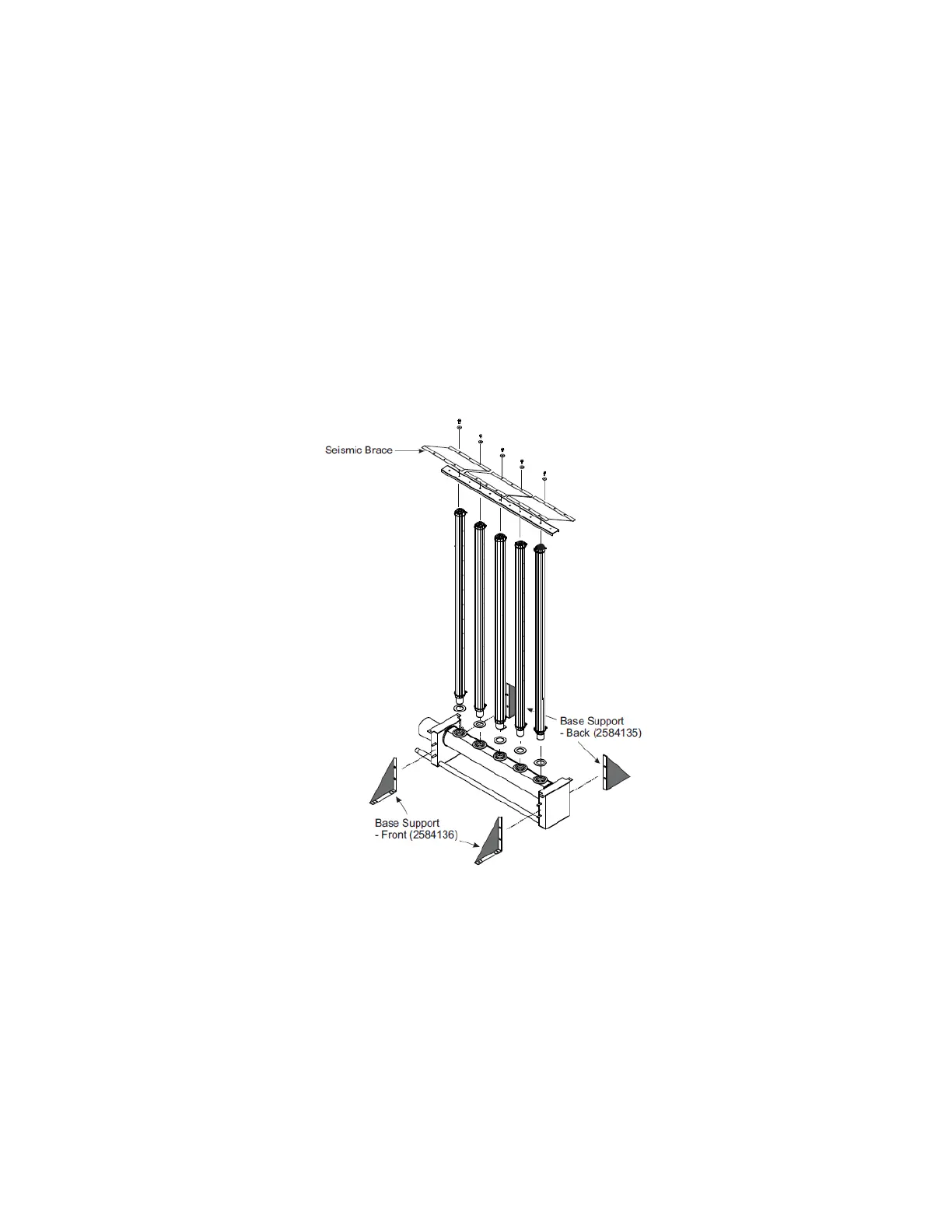

Seismic installation for Nortec SAM-e floor mount
With the hardware kit that accompanies the Nortec SAM-e, the
seismic brace is screw fastened to the Nortec SAM-e tubes
(torque to 8-10 in/lbs) sandwiching the top rail between.
The other end of the seismic brace secures to the ceiling of the
air handler with minimum 2 x 5/16” diameter grade 5 screws
per span of seismic brace.
With the hardware kit that accompanies the Nortec SAM-e,
fasten the base support to the Nortec SAM-e header with the
supplied 5/16” self-locking bolts.
Secure the base support to the floor of the air handler with 2 x
5/16” diameter grade 5 screws per base support.
