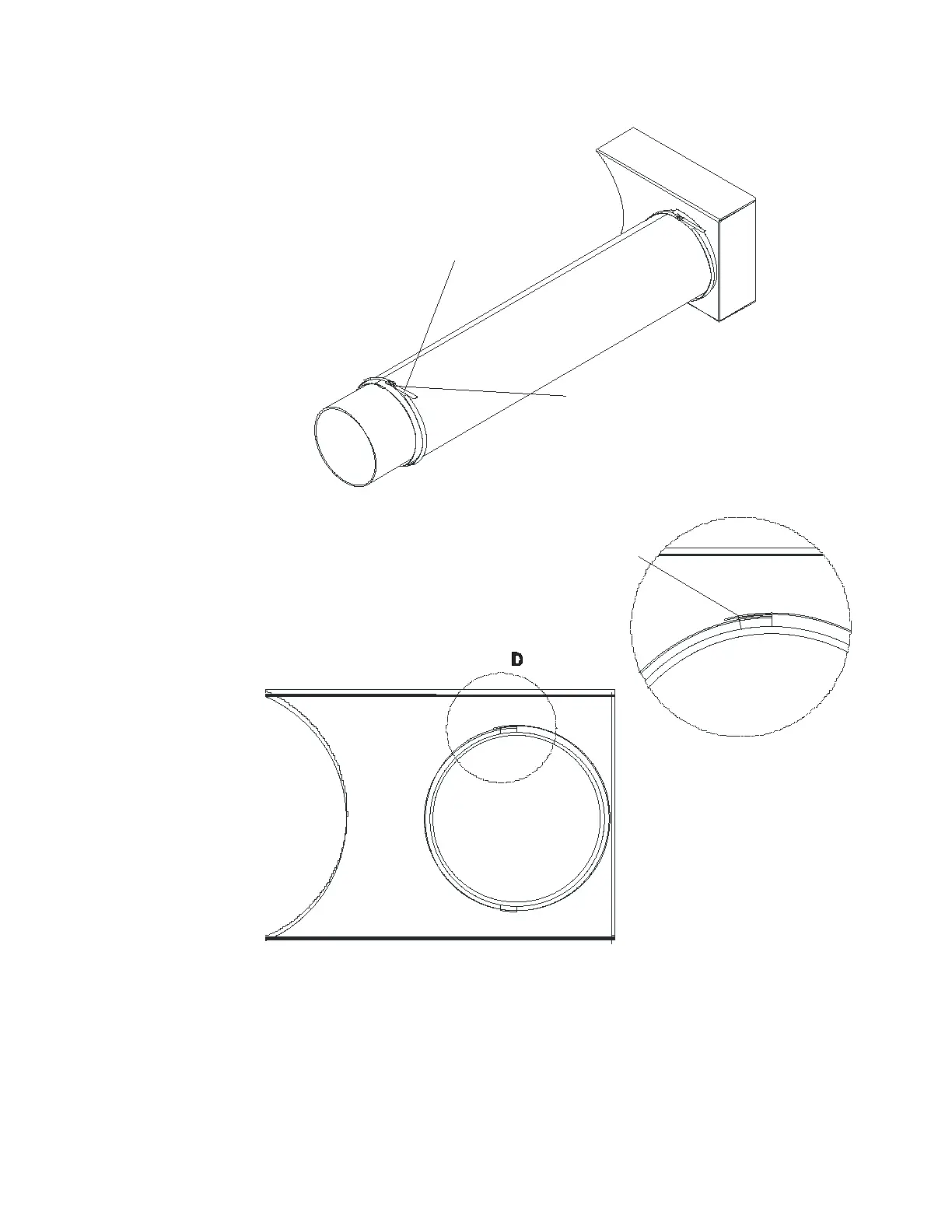

FOR DUAL INLETS; INSULATE HEADER AS SHOWN ON PREVIOUS PAGE.
INSULATE SECOND INLET AS SHOWN
ROLL SHIELD TO
CREATE OVERLAP
DETAIL D
USE TIE WRAP 2538347 TO
SECURE IN PLACE.
D
ALWAYS PLACE TIE WRAPS AT THE
ENDS OF THE SHILED, 1/2 INCH IN.
WHEN 3 TIE WRAPS ARE NEEDE
POSITION ONE IN THE
APPROXIMATE MIDDLE CUT OFF
EXCESS END. TIGHTEN UNTIL
SNUG. DO NOT CRUSH
ORIENT END AS SHOWN
