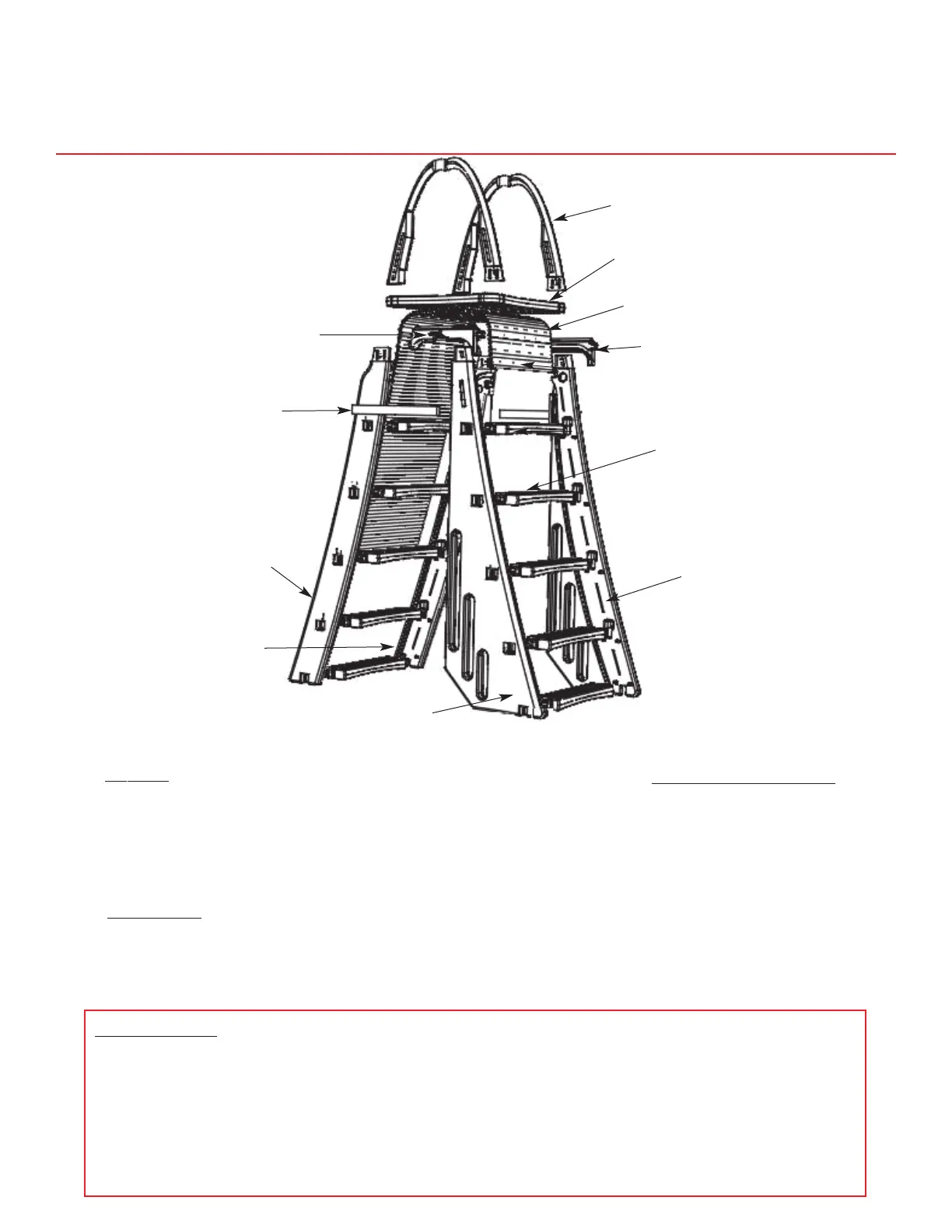

Handrails
Right Bridge
Left Bridge
Deck
Hard
ware Bag
4 - Plug 2 - 1/4" Flat Washer
6 - #10 x 1-1/4" Self Tapping Screw 2 - 1/4" Hex Nut
2 - 1/4 - 20 x 3-1/2" Bolt 1 - Padlock
1 - Instruction sheet
T
ools Needed for Assembly
1 - Rubber Mallet
1 - Cordless Drill w/Phillips Driver
1 - Garden Hose
1 - 1/4" Drill Bit
1 - Phillips Screwdriver
1 - Pliers
Helpful Hints:
1). Assemble the ladder by laying it down on a smooth flat surface.
2). All ten treads are the same, but must be installed tab marked minus [-] into tread lock
opening marked minus [-] and tab marked plus [+] into tread lock opening marked
plus [+] on the rails. TREADS MUST NOT BLOCK THE ROLL-GUARD TRACKS
LOCATED ON THE INSIDE AND OUTSIDE RAILS.
3). The roll-guard locking assembly is pre-installed on the left bridge.
4). Slide the roll-guard into track, grab handle first.
Model #7200 “ROLL-GUARD” A-FRAME LADDER
For Rigid-Framed Above Ground Pools
ASSEMBLY INSTRUCTIONS - PLEASE READ BEFORE ATTEMPTING ASSEMBLY
P
arts List
4 - Handrail 1 - Roll Guard
1 - Deck 1 - Outside Left Rail (OL)
1 - Left Bridge with lock assembly 1 - Outside Right Rail (OR)
1 - Right Bridge 1 - Inside Left Rail (IL)
2 - Adjustable Brace 1 - Inside Right (IR)
10 - Ladder Tread
If missing parts call - Toll free U.S./Canada - 866-396-2968 or www.conferladders.com
Adjustable
Brace
Outside
Right Rail
(OR)
Roll-guard
Outside
Left Rail
(OL)
Inside
Right Rail
(IR)
Inside Left Rail (IL)
Treads
