Installation

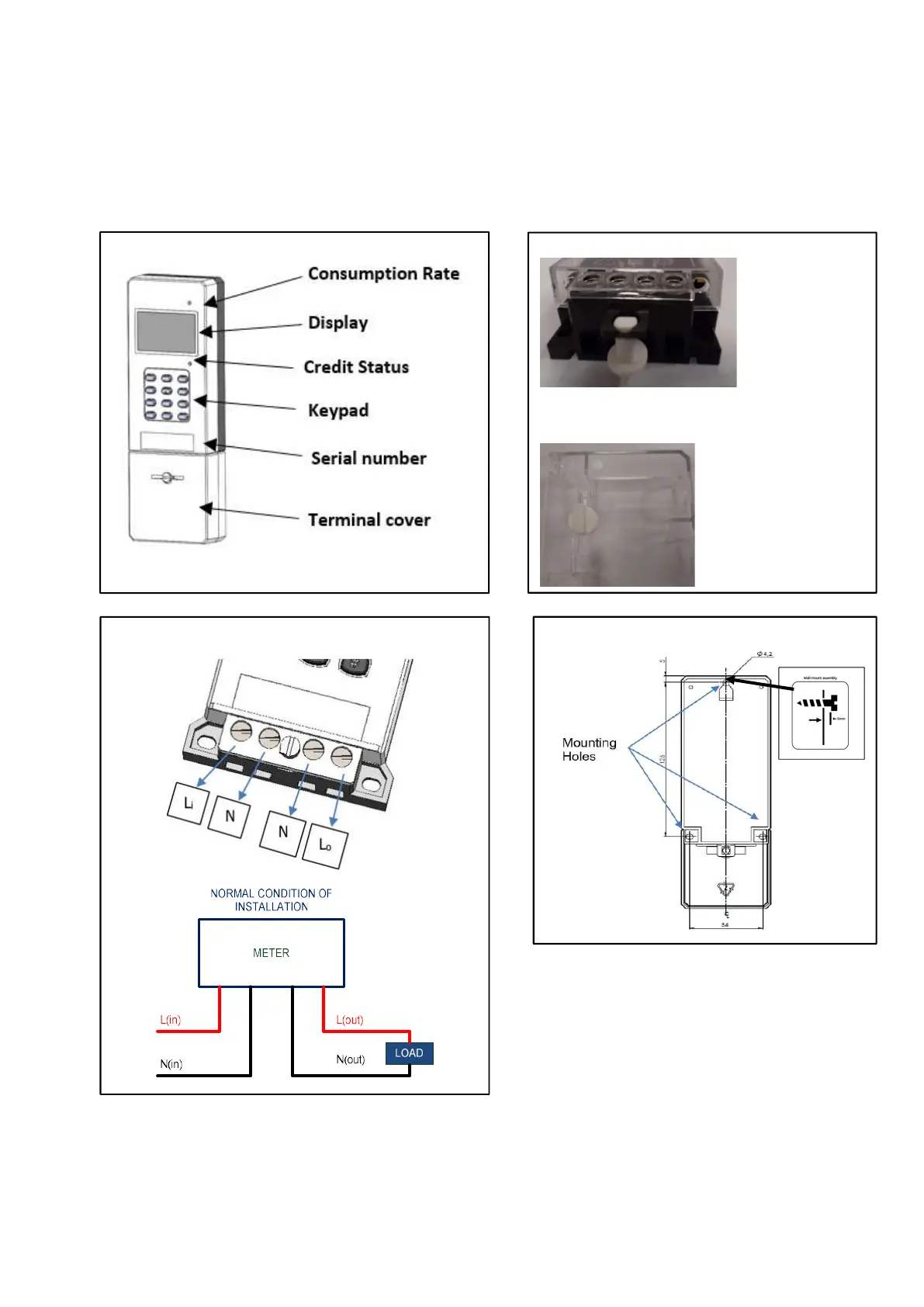

Diagrams and Illustrations
Figure 2: Terminal Cover
Remove terminal screw before mounting the
meter and insert the terminal screw on to the
terminal cover.
Figure 1: Product Layout
Figure 3: Terminals
Figure 4: Mounting
