Conqueror CIL-CD800S - Installation Sketch Map; Sectional Rail Assembly

www.conquerordoors.com
3
3.2 Installation sketch map

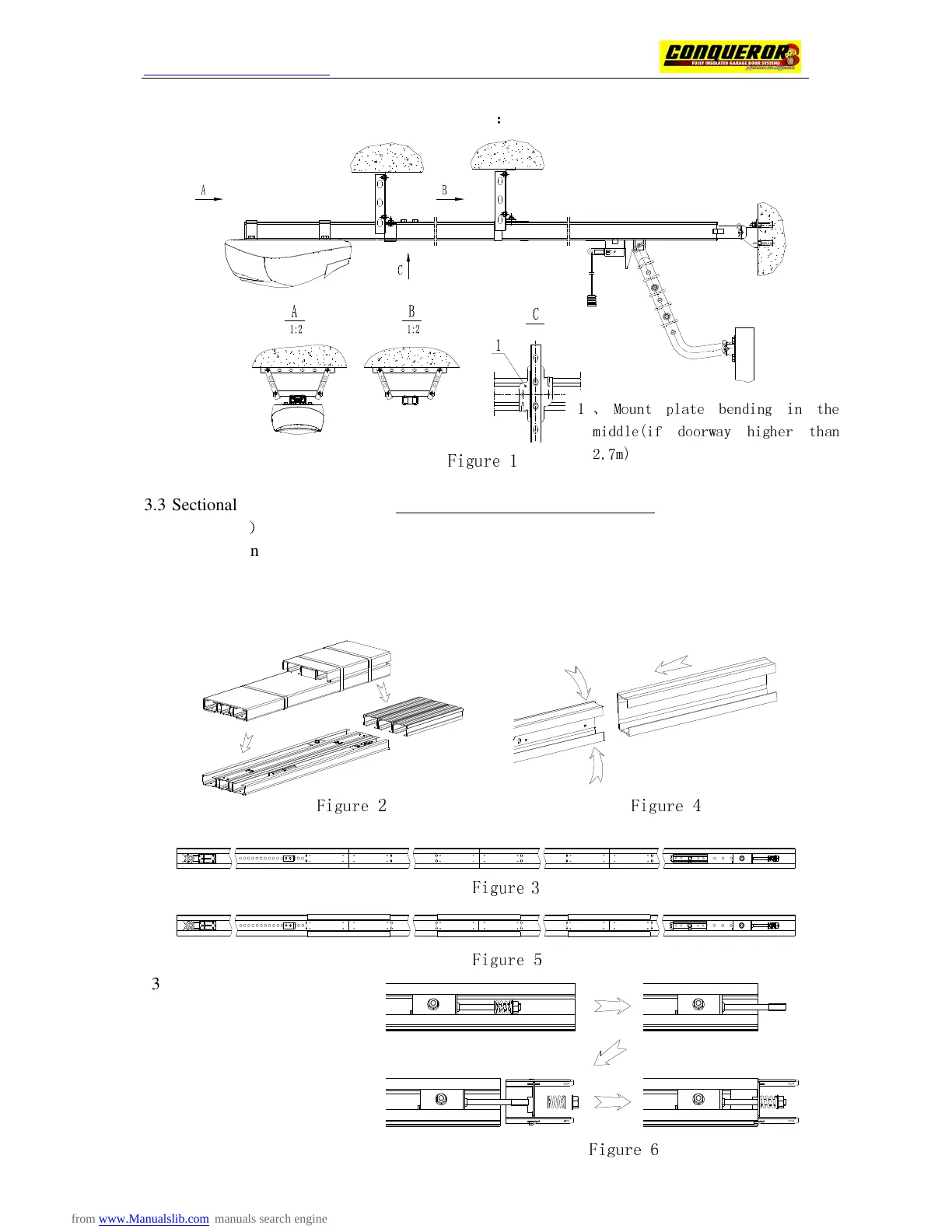

As figure 1 shows the completed installation ：
3.3 Sectional rail assembly (Note: Not required in One Piece Rail Kits – go to 3.4, Head to
Rail Assembly ）
3.3.1 Rail connection
Place the sectional rails (as shown in Figure 2) on a clean and flat surface (as shown in
Figure 3), and put them in line . Connect the sectional rails (as shown in Figure 4), finish it
as shown in Figure 5.
3.3.2 Fix chain (belt)
As shown in Figure 6, install
Front support of rail, adjust chain
or belt in modest tension state.
1 、 Mount plate bending in the
middle(if doorway higher than
2.7m)
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 1
