Installation Installation

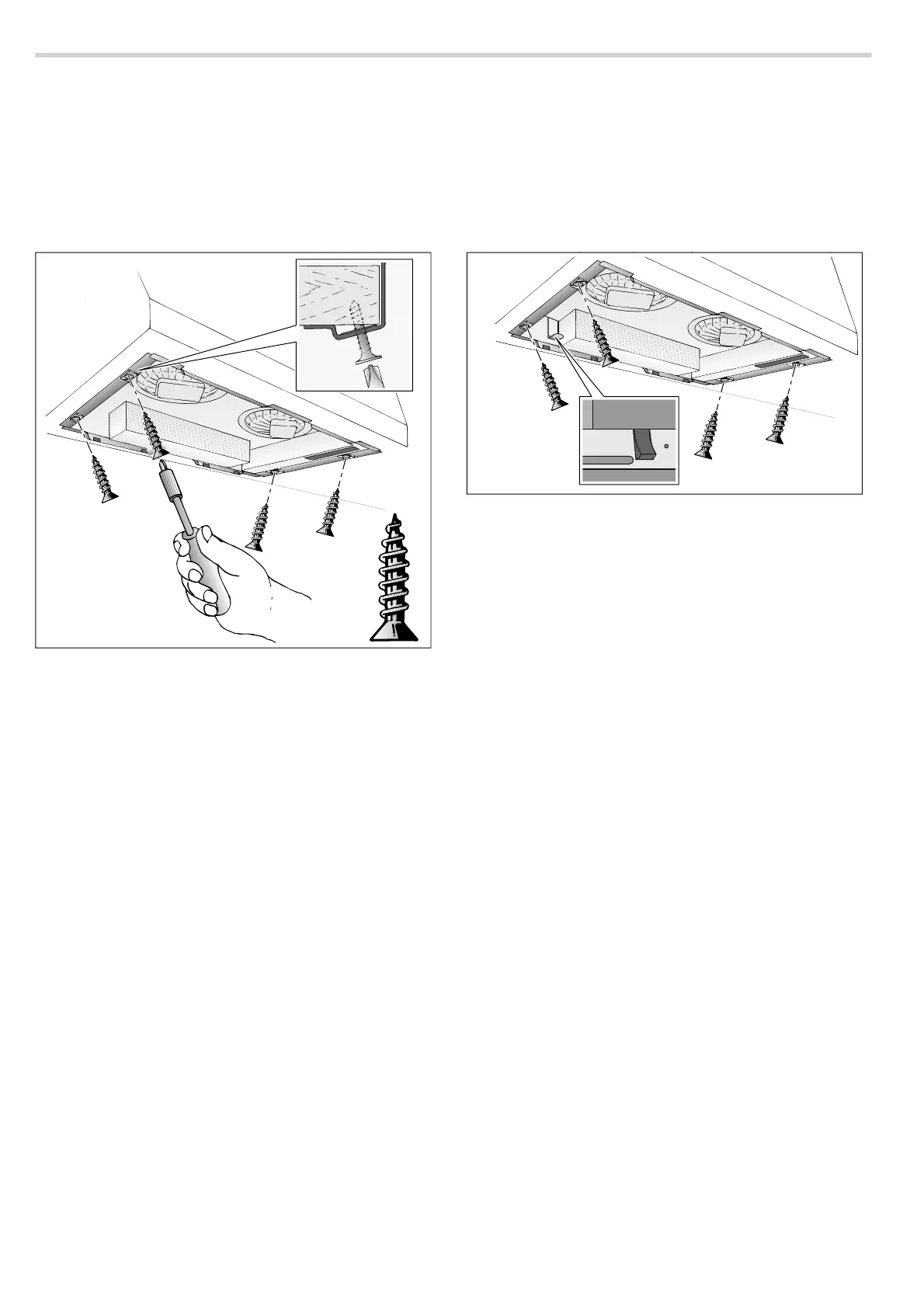

Final fitting stage
1. Remove the metal grease filter.
2. Establish the electrical connection.
3. Push the extractor hood in the housing up until the mounting
spring at the front and rear clicks into place.
4. Screw the extractor hood in tightly.
5. Insert and lock the metal grease filter.
Connecting the pipes
Note: If an aluminium pipe is used, smooth the area where it is
to be connected before you connect it.
Exhaust air pipe, dia. 150 mm (recommended size)
Fit the exhaust air pipe directly to the air-pipe connector and
seal the joint.
Exhaust air pipe, dia. 120 mm
1. Fit the reducing connector directly to the air-pipe connector.
2. Attach the exhaust air pipe to the reducing connector.
3. Seal both joints appropriately.
Removing the appliance
1. Disconnect the electrical connection.
2. Undo the screws.
3. Disconnect the pipes.
4. Hold the extractor hood down. Pull at the front and rear of the
mounting spring.
5. Pull the extractor hood downwards and out.
